Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

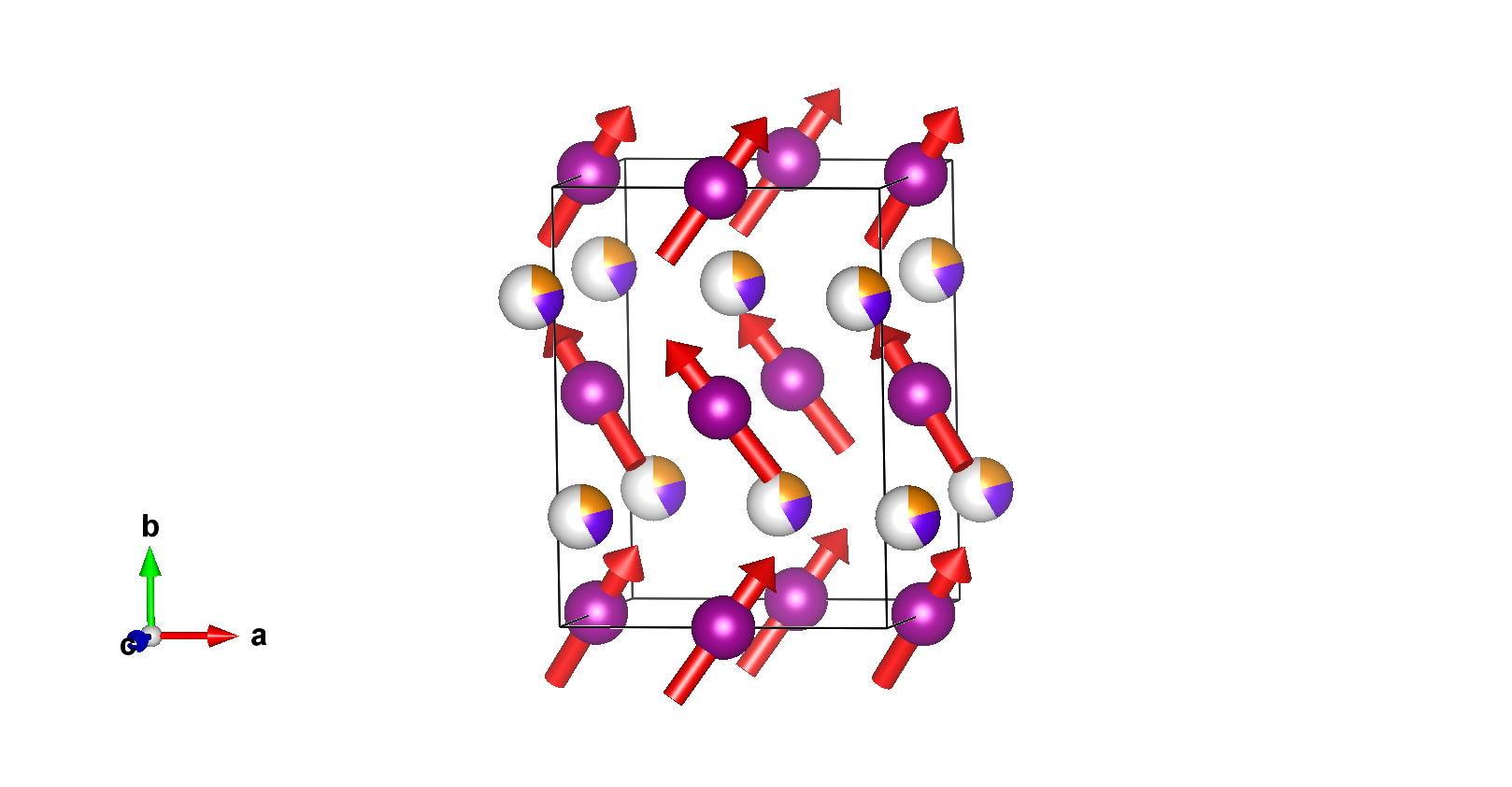

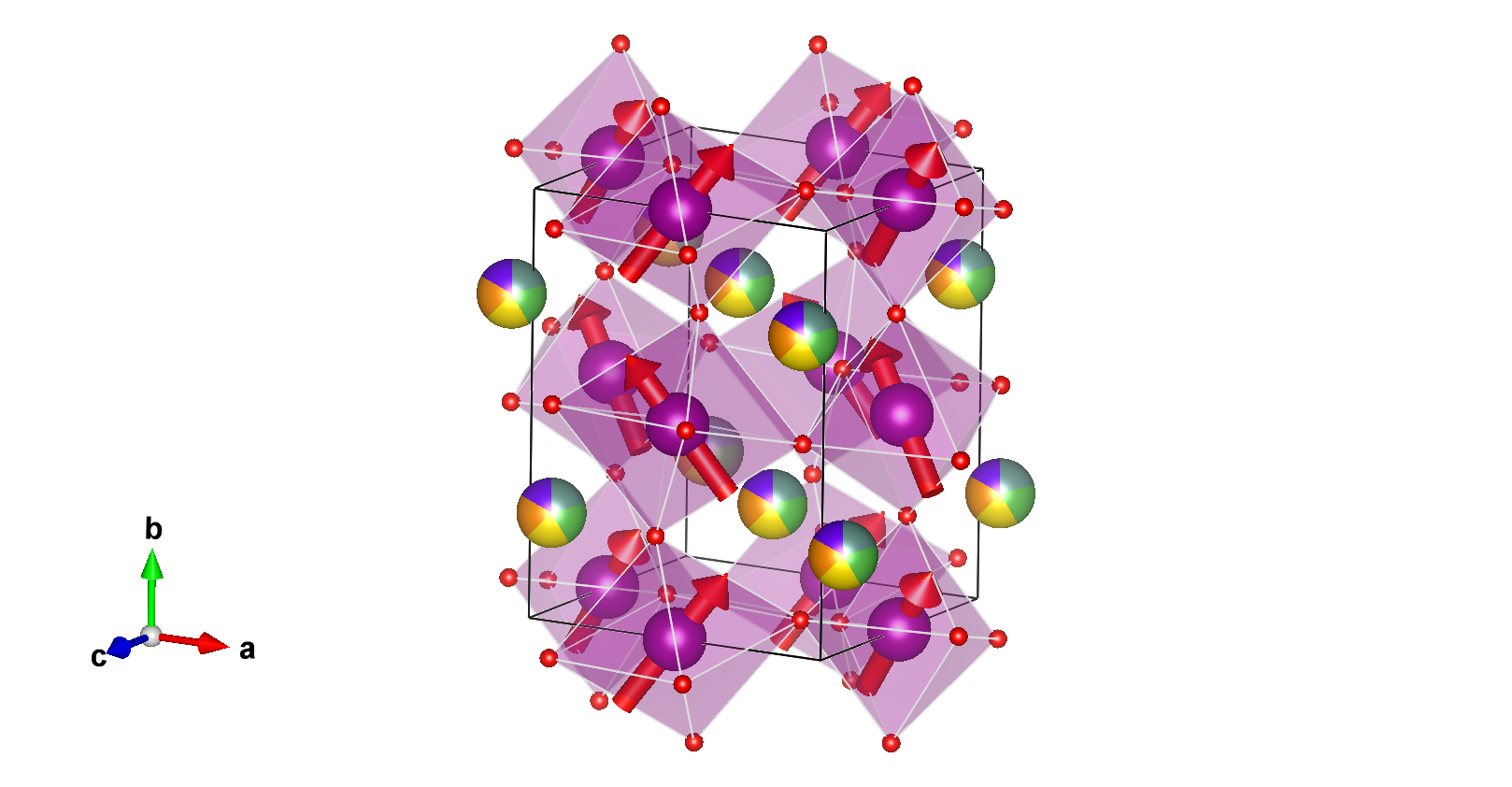

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.50000	1.	4	m_x,m_y,m_z	0.346	0.5	0.146	0.63

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Y1	Y	0.06735	0.25000	0.98960	0.2	4
La1	La	0.06735	0.25000	0.98960	0.2	4
Pr1	Pr	0.06735	0.25000	0.98960	0.2	4
Nd1	Nd	0.06735	0.25000	0.98960	0.2	4
Tb1	Tb	0.06735	0.25000	0.98960	0.2	4
O1	O	0.47620	0.25000	0.08670	1.	4
O2	O	0.18351	0.54537	0.21109	1.	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	0.34600	0.50000	0.14600
2	0.00000	0.50000	0.50000	-m_x,m_y,-m_z	-0.34600	0.50000	-0.14600
3	0.50000	0.50000	0.00000	-m_x,m_y,m_z	-0.34600	0.50000	0.14600
4	0.50000	0.00000	0.00000	m_x,m_y,-m_z	0.34600	0.50000	-0.14600

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.50000	4	m_x,m_y,m_z	0.346	0.5	0.146	0.63

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	0.34600	0.50000	0.14600
2	0.00000	0.50000	0.50000	-m_x,m_y,-m_z	-0.34600	0.50000	-0.14600
3	0.50000	0.50000	0.00000	-m_x,m_y,m_z	-0.34600	0.50000	0.14600
4	0.50000	0.00000	0.00000	m_x,m_y,-m_z	0.34600	0.50000	-0.14600

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4+	1	1	primary	3
