Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.31803	0.81803	0.00000	4	0,0,m_z	0.0	0.0	1.	1.00

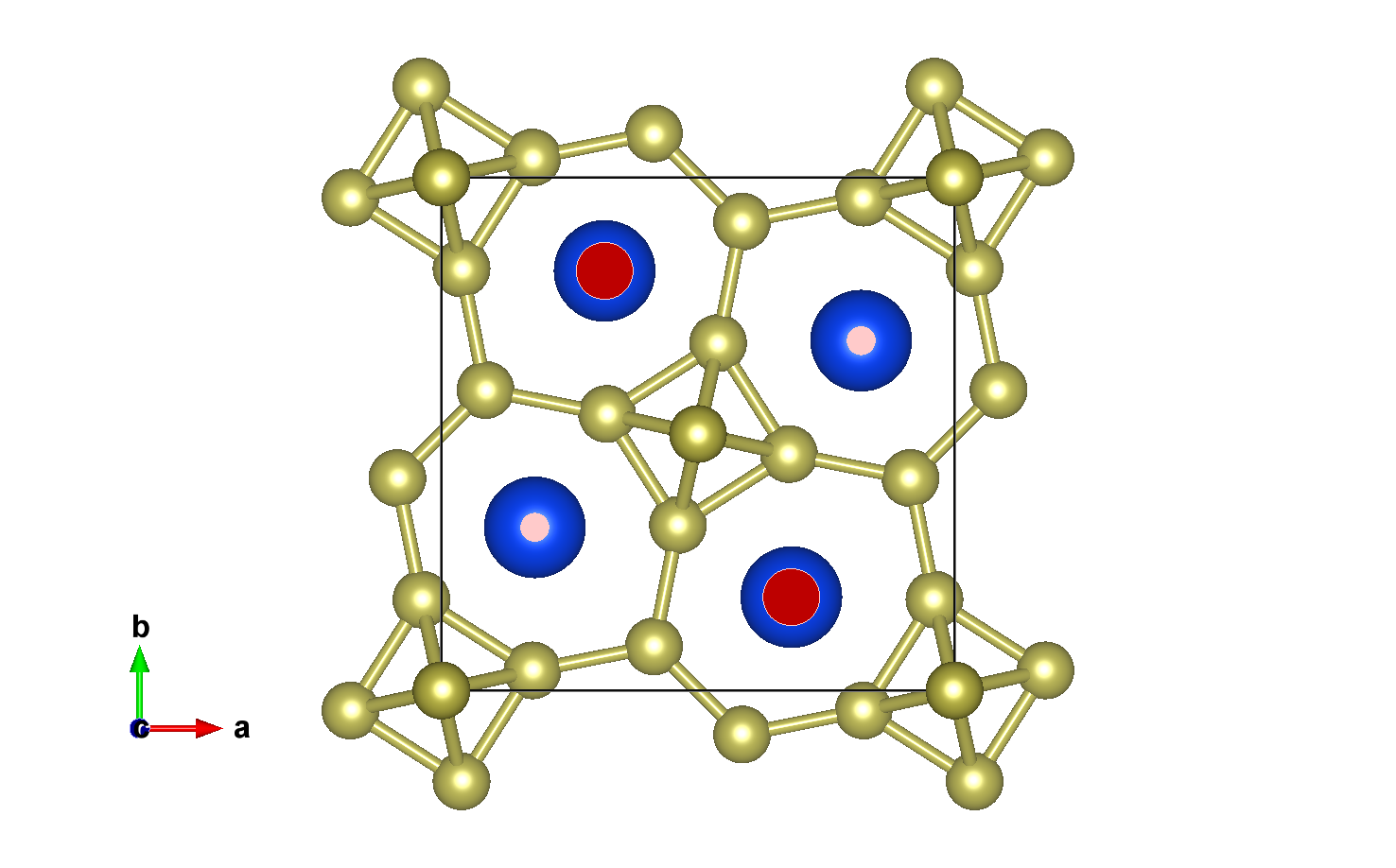

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Tm1	Tm	0.00000	0.00000	0.2062	4
Tm2	Tm	0.0859	0.5859	0.50000	4
Tm3	Tm	0.1773	0.0391	0.50000	8

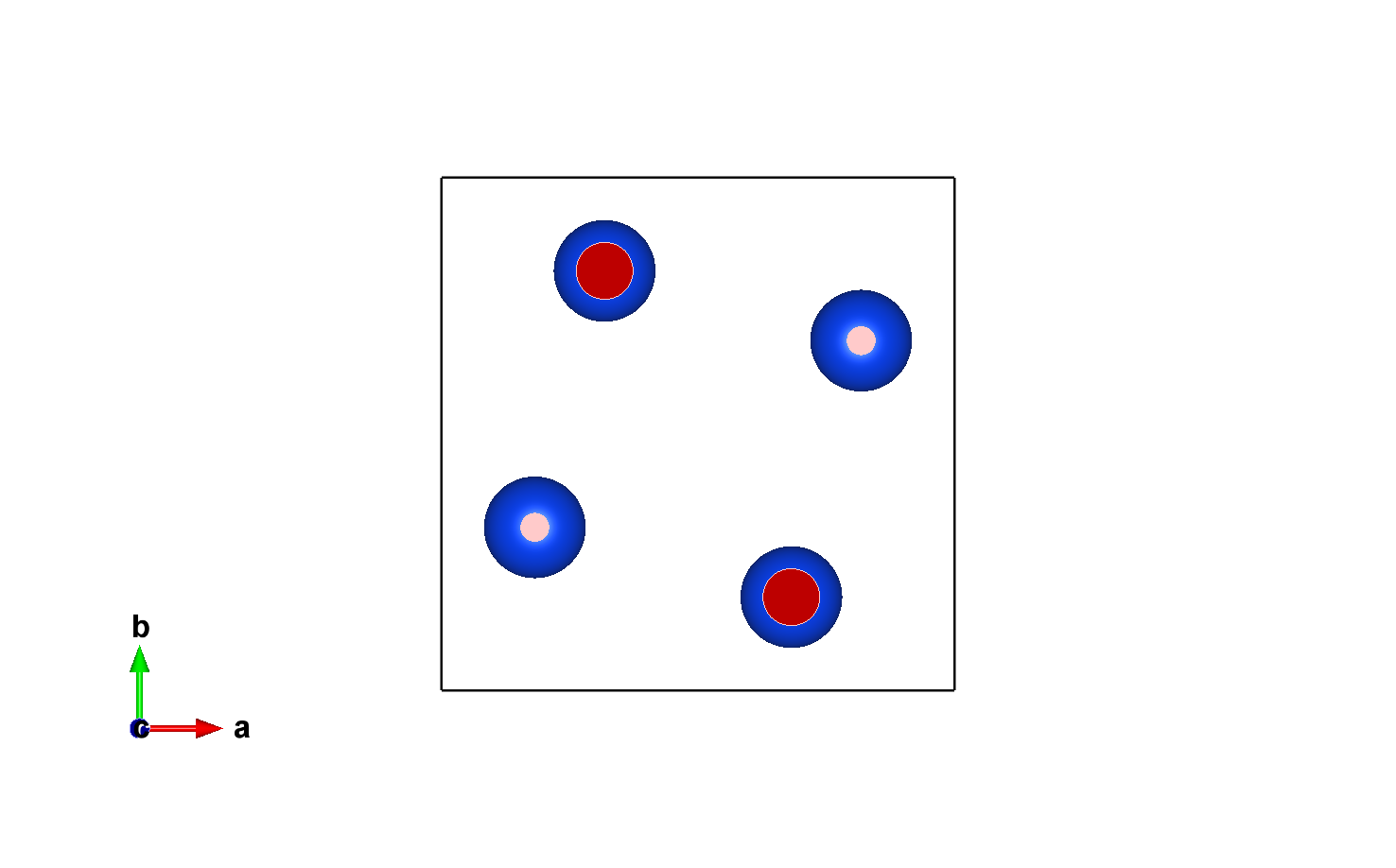

Atom	x	y	Symmetry constraints on M	M_z
1	0.31803	0.81803	0,0,m_z	1.00000
2	0.81803	0.68197	0,0,-m_z	-1.00000
3	0.18197	0.31803	0,0,-m_z	-1.00000
4	0.68197	0.18197	0,0,m_z	1.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.31803	0.81803	0.00000	4	0,0,m_z	0.0	0.0	1.	1.00

Atom	x	y	Symmetry constraints on M	M_z
1	0.31803	0.81803	0,0,m_z	1.00000
2	0.81803	0.68197	0,0,-m_z	-1.00000
3	0.18197	0.31803	0,0,-m_z	-1.00000
4	0.68197	0.18197	0,0,m_z	1.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1
