Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

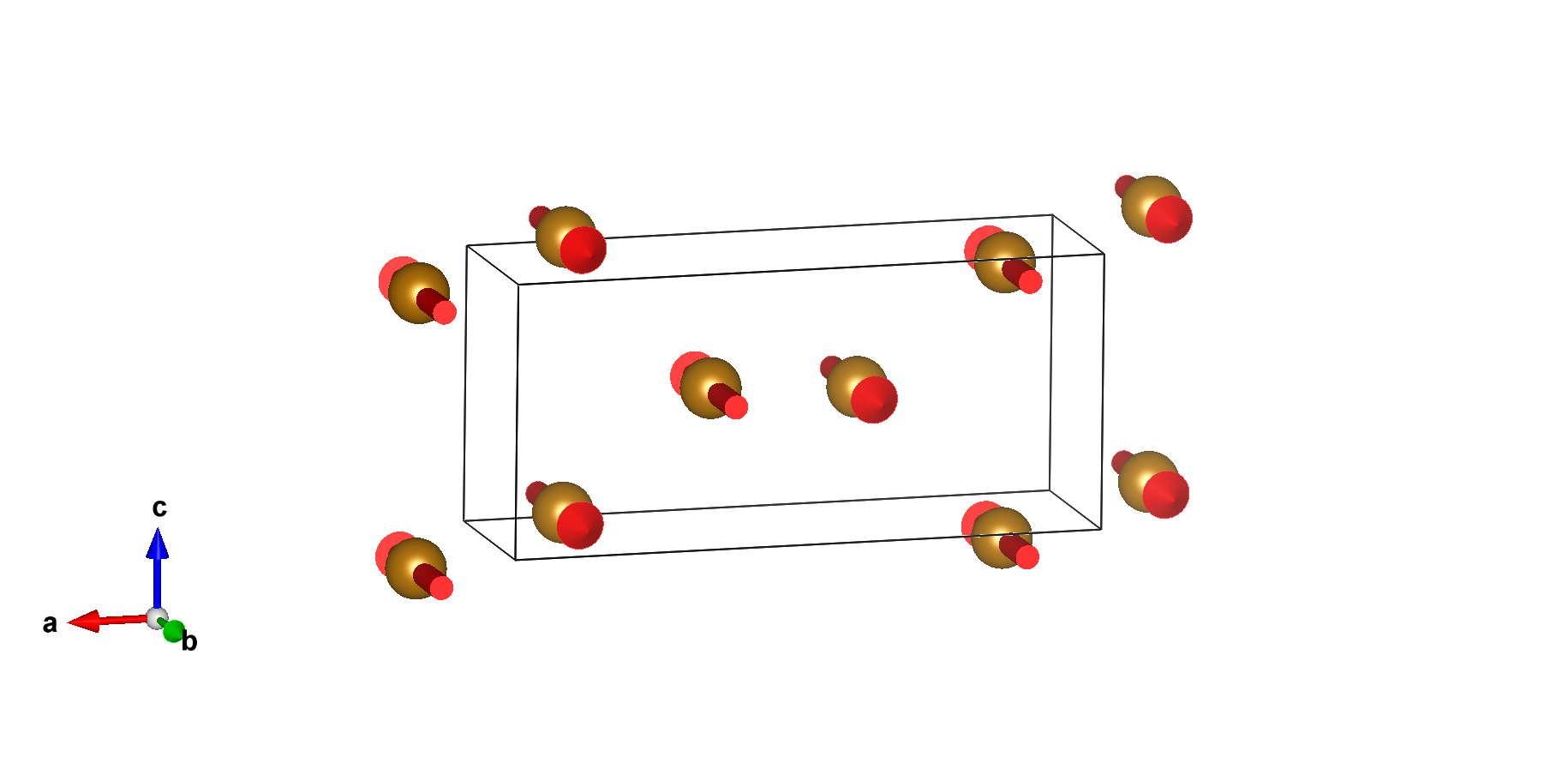

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.85271(19)	0.25	0.04986(42)	4	0,m_y,0	0.0	3.64(4)	0.0	3.64

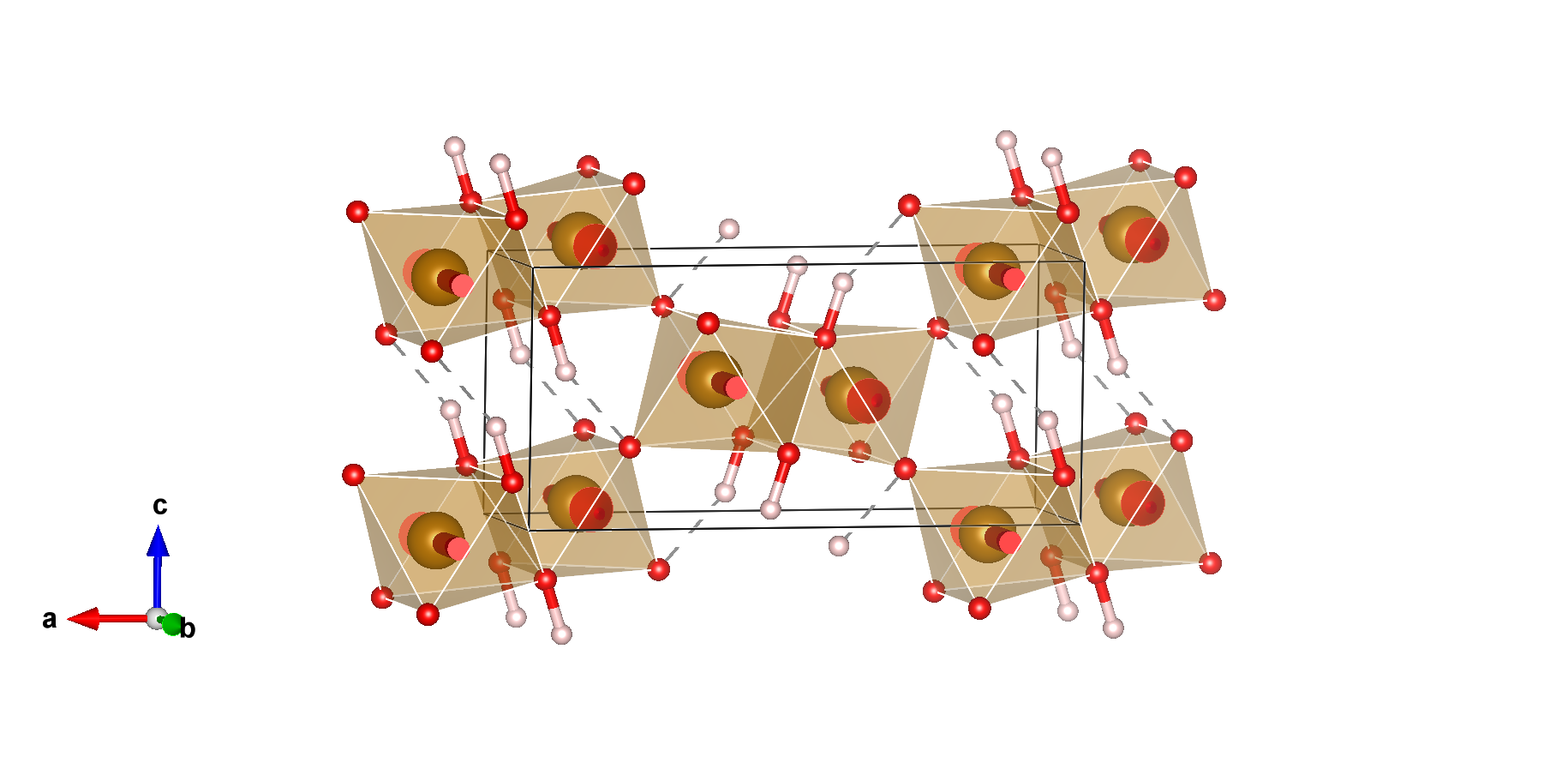

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
O1	O	0.20146(34)	0.25	0.70280(69)	4
O2	O	0.05209(31)	0.25	0.20266(70)	4
H1	H	0.08306(63)	0.25	0.41172(138)	4

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.85271	0.25000	0.04986	0,m_y,0	3.64000
2	0.64729	0.75000	0.54986	0,-m_y,0	-3.64000
3	0.35271	0.25000	0.45014	0,m_y,0	3.64000
4	0.14729	0.75000	0.95014	0,-m_y,0	-3.64000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.85271(19)	0.25	0.04986(42)	4	0,m_y,0	0.0	3.64(4)	0.0	3.64

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.85271	0.25000	0.04986	0,m_y,0	3.64000
2	0.64729	0.75000	0.54986	0,-m_y,0	-3.64000
3	0.35271	0.25000	0.45014	0,m_y,0	3.64000
4	0.14729	0.75000	0.95014	0,-m_y,0	-3.64000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM2-	1	1	special	primary	1
