Transformation matrix from the parent setting (a_p,b_p,c_p) to the standard setting of the parent space group (a_pst,b_pst,c_pst):

[Hide]

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

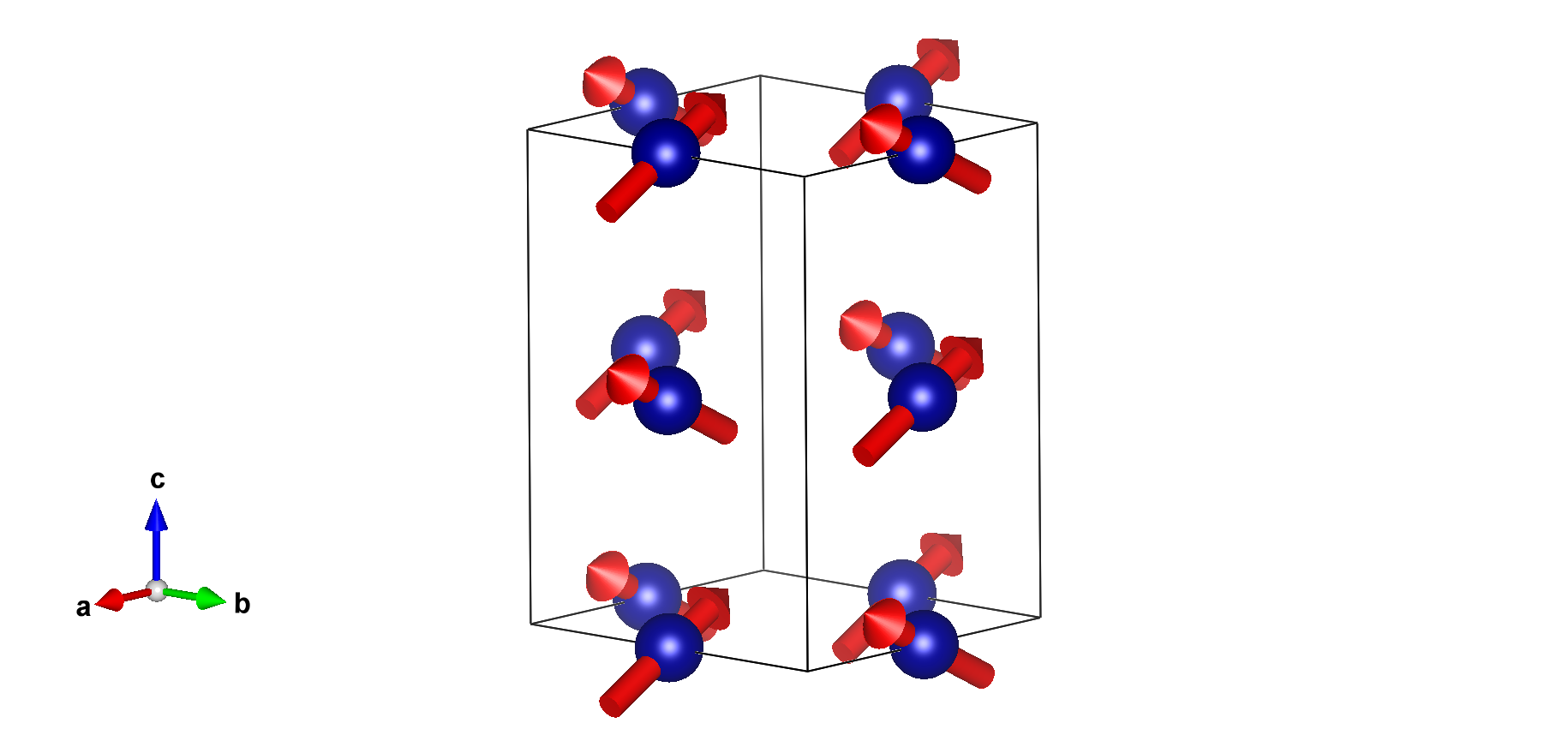

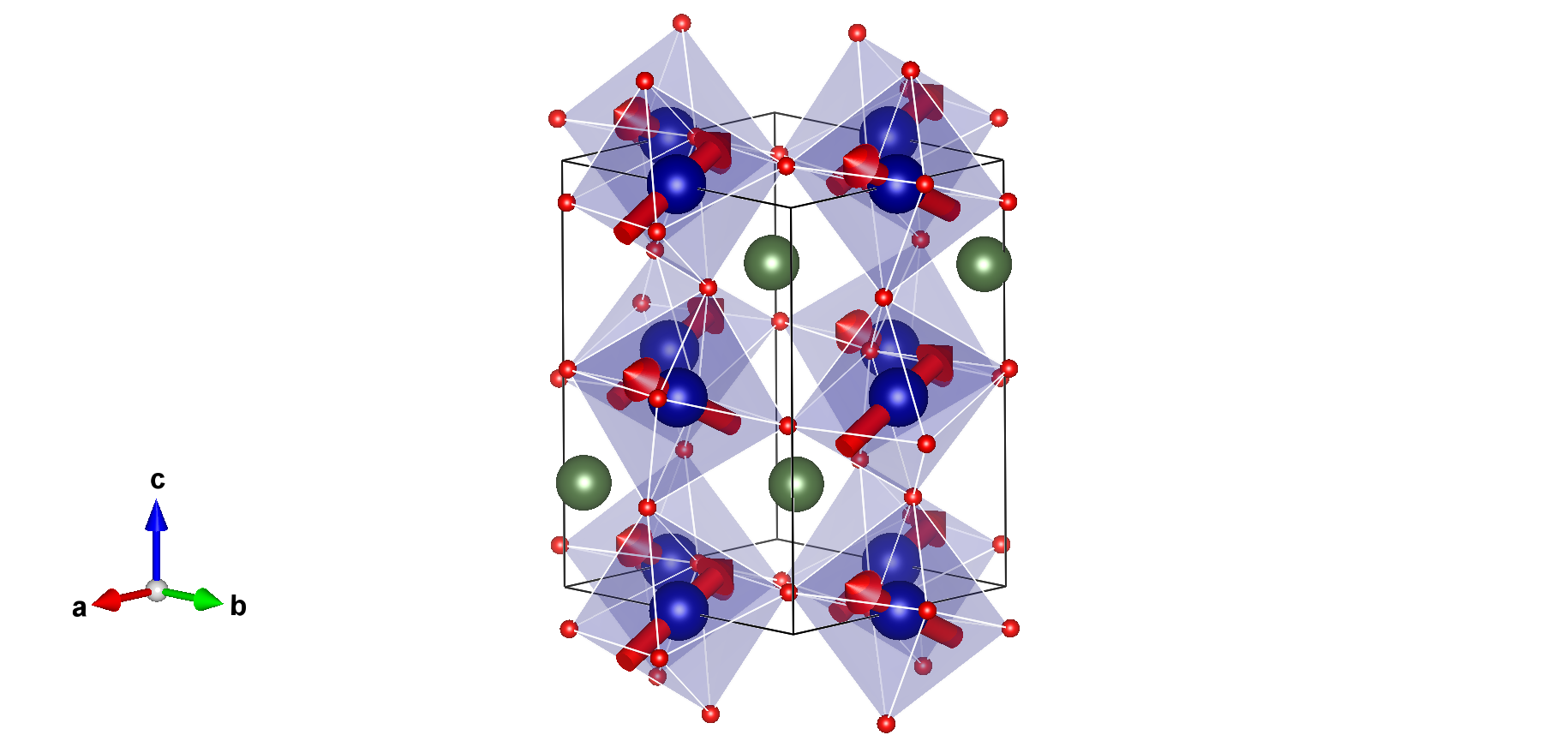

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.5000	0.0000	0.0000	4	m_x,m_y,m_z	2.44(2)	0.0	1.26(4)	2.75

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Er1	Er	-0.0194(4)	0.0685(3)	0.2500	4
O1	O	0.1061(4)	0.4629(4)	0.2500	4
O2	O	0.6929(3)	0.3012(3)	0.05456(2)	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.50000	0.00000	0.00000	m_x,m_y,m_z	2.44000	1.26000
2	0.50000	0.00000	0.50000	-m_x,-m_y,m_z	-2.44000	1.26000
3	0.00000	0.50000	0.50000	m_x,-m_y,m_z	2.44000	1.26000
4	0.00000	0.50000	0.00000	-m_x,m_y,m_z	-2.44000	1.26000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.5000	0.0000	0.0000	4	m_x,m_y,m_z	2.44(2)	0.0	1.26(4)	2.75

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.50000	0.00000	0.00000	m_x,m_y,m_z	2.44000	1.26000
2	0.50000	0.00000	0.50000	-m_x,-m_y,m_z	-2.44000	1.26000
3	0.00000	0.50000	0.50000	m_x,-m_y,m_z	2.44000	1.26000
4	0.00000	0.50000	0.00000	-m_x,m_y,m_z	-2.44000	1.26000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM4+	1	1	general	primary	4
