Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,z,+1	{ m₀₁₀ \| 0 }
3	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
4	-x,-y,-z,-1	{ -1' \| 0 }
(1/2,1/2,0) + set click here to show and hide
5	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
6	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
7	-x+1/2,y+1/2,-z,-1	{ 2'₀₁₀ \| 1/2 1/2 0 }
8	-x+1/2,-y+1/2,-z,-1	{ -1' \| 1/2 1/2 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

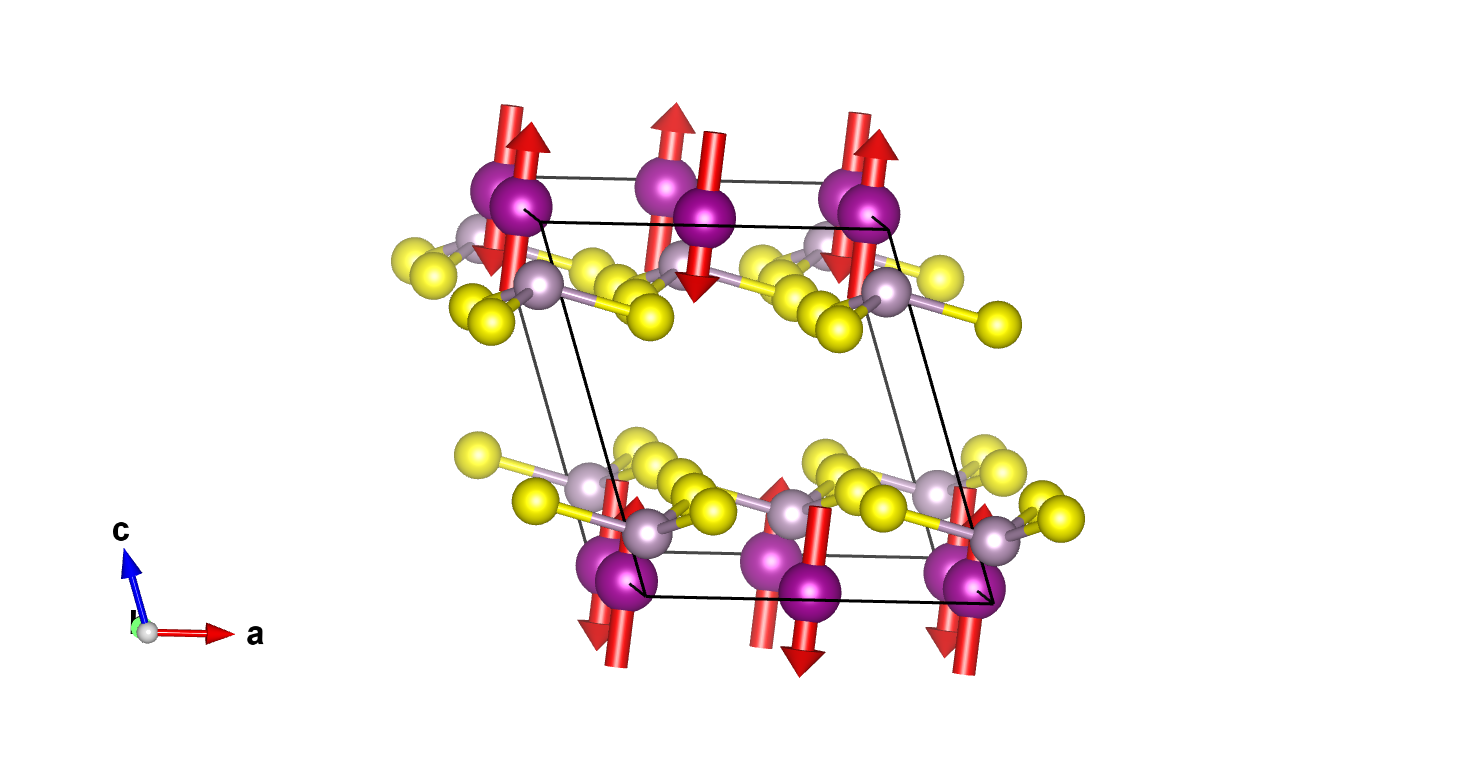

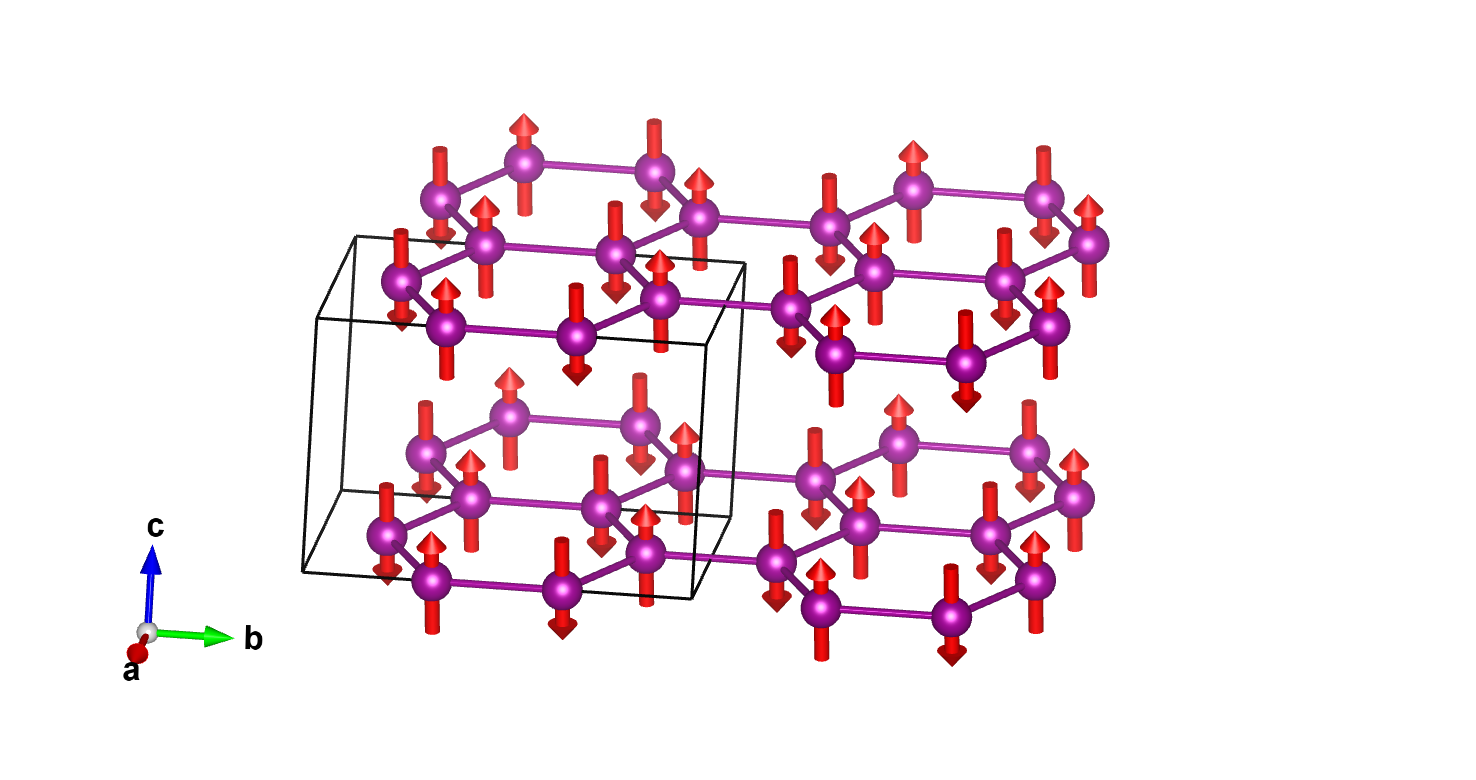

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.33258	0.00000	4	m_x,0,m_z	1.99	0.0	4.6	4.43

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
P1	P	0.05560	0.00000	0.16860	4
S1	S	0.75930	0.00000	0.24970	4
S2	S	0.24380	0.16120	0.25160	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.33258	0.00000	m_x,0,m_z	1.99000	0.00000	4.60000
2	0.00000	0.66742	0.00000	-m_x,0,-m_z	-1.99000	0.00000	-4.60000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.83258	0.00000	m_x,0,m_z	1.99000	0.00000	4.60000
4	0.50000	0.16742	0.00000	-m_x,0,-m_z	-1.99000	0.00000	-4.60000

Atom	x	y	z
1	0.05560	0.00000	0.16860
2	0.94440	0.00000	0.83140
(1/2,1/2,0) + set click here to show and hide
3	0.55560	0.50000	0.16860
4	0.44440	0.50000	0.83140

Atom	x	y	z
1	0.75930	0.00000	0.24970
2	0.24070	0.00000	0.75030
(1/2,1/2,0) + set click here to show and hide
3	0.25930	0.50000	0.24970
4	0.74070	0.50000	0.75030

Atom	x	y	z
1	0.24380	0.16120	0.25160
2	0.24380	0.83880	0.25160
3	0.75620	0.16120	0.74840
4	0.75620	0.83880	0.74840
(1/2,1/2,0) + set click here to show and hide
5	0.74380	0.66120	0.25160
6	0.74380	0.33880	0.25160
7	0.25620	0.66120	0.74840
8	0.25620	0.33880	0.74840

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.33258	0.00000	4	m_x,0,m_z	1.99	0.0	4.6	4.43

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.33258	0.00000	m_x,0,m_z	1.99000	0.00000	4.60000
2	0.00000	0.66742	0.00000	-m_x,0,-m_z	-1.99000	0.00000	-4.60000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.83258	0.00000	m_x,0,m_z	1.99000	0.00000	4.60000
4	0.50000	0.16742	0.00000	-m_x,0,-m_z	-1.99000	0.00000	-4.60000
