MAGNDATA: A Collection of magnetic structures with portable cif-type files

working...

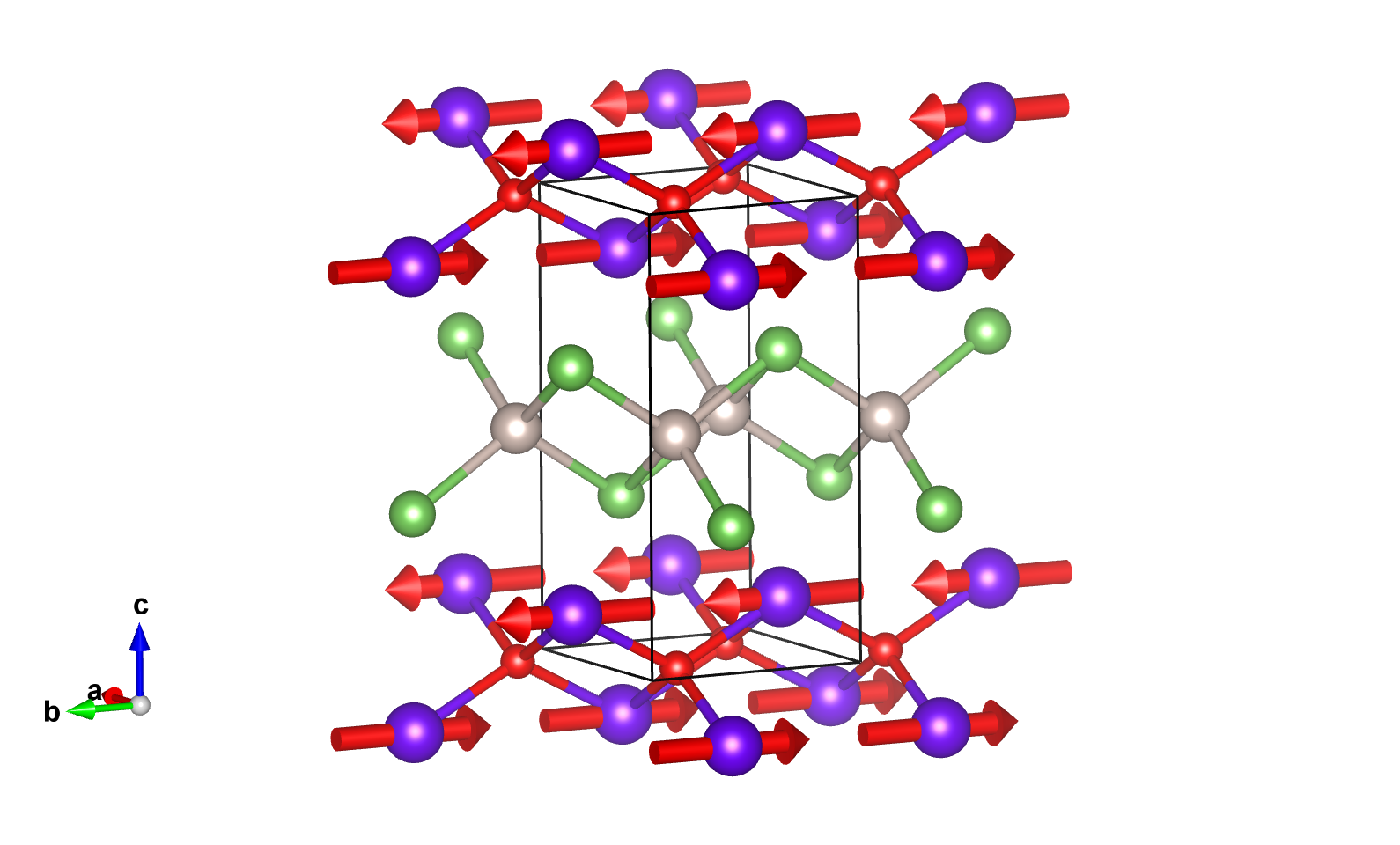

Magnetic structure with all atoms

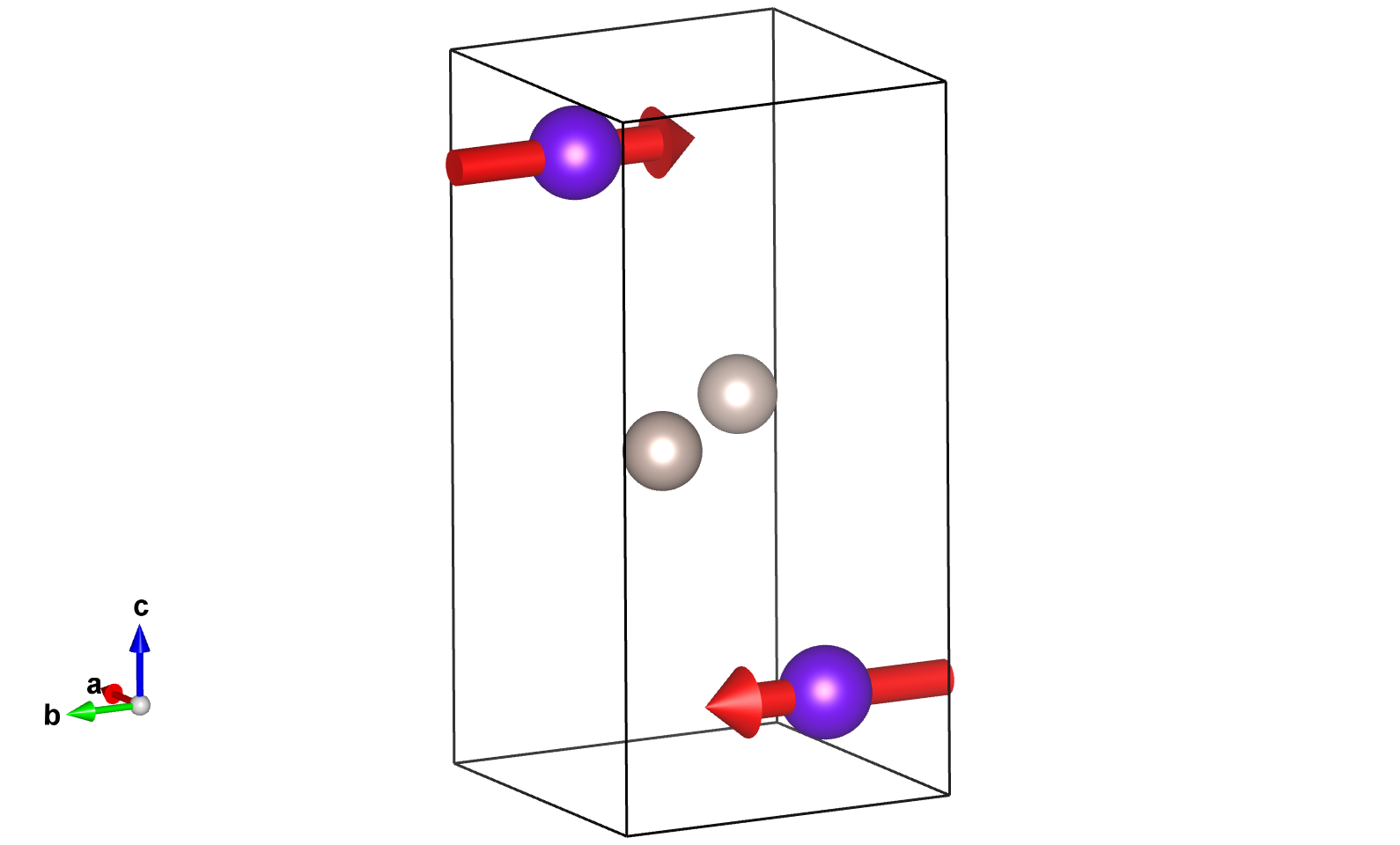

Magnetic structure with only magnetic atoms

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/2,-y,-z,+1	{ 2₁₀₀ \| 1/2 0 0 }
3	x,-y+1/2,z,+1	{ m₀₁₀ \| 0 1/2 0 }
4	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
5	-x,y+1/2,-z,-1	{ 2'₀₁₀ \| 0 1/2 0 }
6	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
7	-x,-y,-z,-1	{ -1' \| 0 }
8	-x+1/2,y,z,-1	{ m'₁₀₀ \| 1/2 0 0 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	x,-y,z,+1	m₀₁₀
4	x,y,-z,+1	m₀₀₁
5	-x,y,-z,-1	2'₀₁₀
6	-x,-y,z,-1	2'₀₀₁
7	-x,-y,-z,-1	-1'
8	-x,y,z,-1	m'₁₀₀

Label	Atom type	x	y	z	Multiplicity
As1	As	0.25000	0.25000	0.664(1)	2
O1	O	0.75000	0.25000	0.00000	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.13320	0,m_y,0	0.00000	5.76000	0.00000
2	0.75000	0.75000	0.86680	0,-m_y,0	0.00000	-5.76000	0.00000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.75000	0.25000	0.50000	0,m_y,0	0.00000	0.00000	0.00000
2	0.25000	0.75000	0.50000	0,-m_y,0	0.00000	0.00000	0.00000

Atom	x	y	z
1	0.25000	0.25000	0.66400
2	0.75000	0.75000	0.33600

Atom	x	y	z
1	0.75000	0.25000	0.00000
2	0.25000	0.75000	0.00000

Reference: M.A. McGuire, V.O. Garlea, A.F. May and B.C. Sales, Physical Review B (2014) 90 014425.
DOI: 10.1103/physrevb.90.014425
Atomic positions from: same reference

Parent space group (paramagnetic phase): P4/nmm (#129)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 7.0 K
Experiment Temperature: 1.5 K

Lattice parameters of the magnetic unit cell:
4.0215(1) 4.0215 8.0558(3) 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pm'mn (#59.407) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'mm (8.3.26)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tb1	Tb	0.25000	0.25000	0.1332(8)	2	0,m_y,0	0.0	5.76(8)	0.0	5.76
Ru1	Ru	0.75000	0.25000	0.50000	2	0,m_y,0	0.0	0.0	0.0	0.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.13320	0,m_y,0	0.00000	5.76000	0.00000
2	0.75000	0.75000	0.86680	0,-m_y,0	0.00000	-5.76000	0.00000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.75000	0.25000	0.50000	0,m_y,0	0.00000	0.00000	0.00000
2	0.25000	0.75000	0.50000	0,-m_y,0	0.00000	0.00000	0.00000

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM5-	2	2	special	primary	1

Comments:

NPD
Ru moment is estimated to be smaller than 0.5 muB and fixed to zero in the reported model.

Comments (symmetry):

1k magnetic structure
k-maximal magnetic symmetry (6 possible)
2-dim irrep long a special direction as primary

Bilbao Crystallographic Server
https://www.cryst.ehu.es

For comments, please mail to
administrador.bcs@ehu.eus

MAGNDATA: A Collection of magnetic structures with portable cif-type files

TbRuAsO (#0.452)
