MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

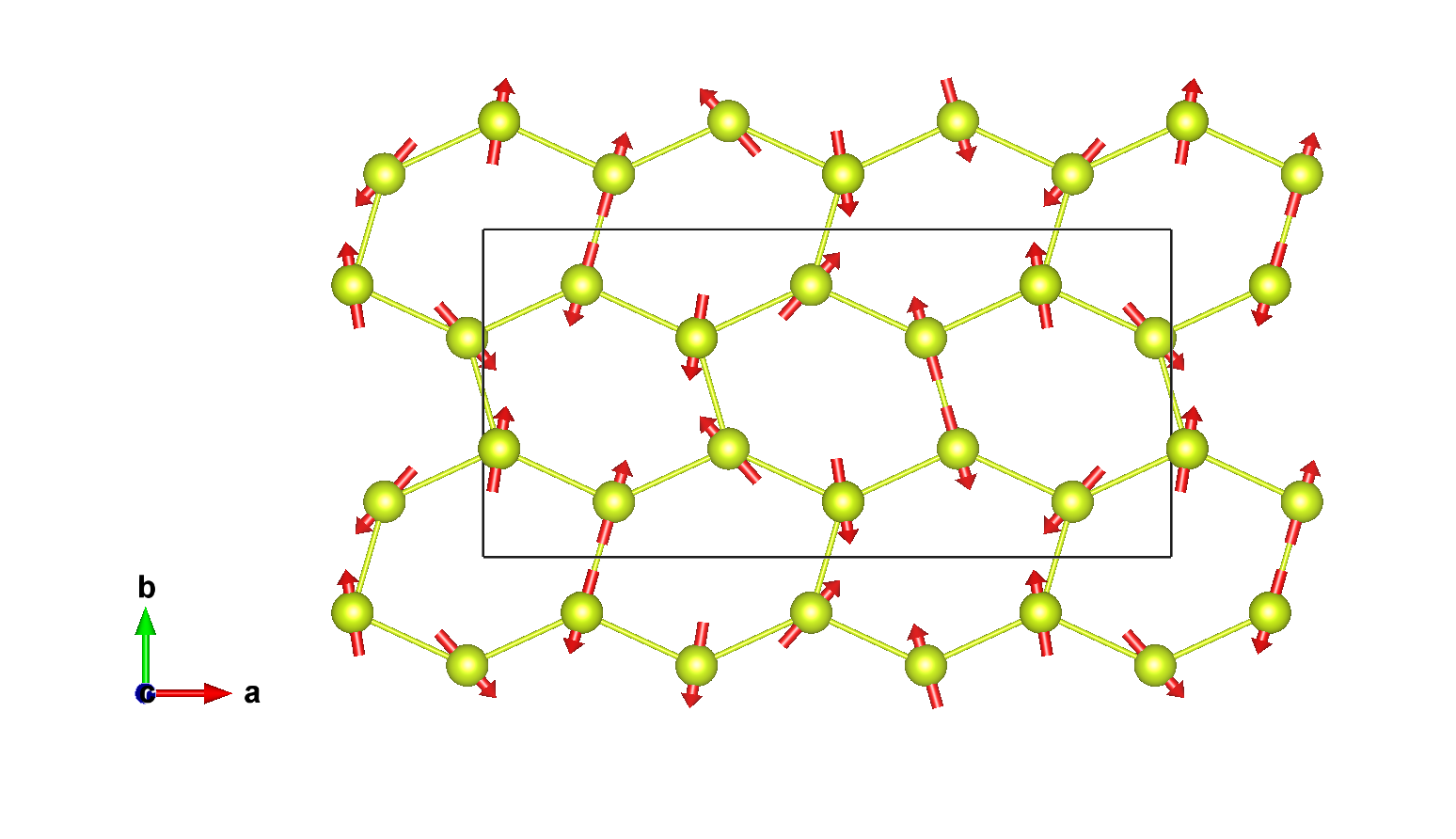

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Ce1_1	Ce	0.02324	0.33084	0.50000	4	m_x,m_y,0	0.20(3)	1.250(10)	1.27
Ce1_2	Ce	0.97676	0.66916	0.50000	4	m_x,m_y,0	0.84(2)	-0.946(19)	1.27
Ce1_3	Ce	0.14342	0.83084	0.50000	4	m_x,m_y,0	-0.35(3)	-1.215(11)	1.26

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sn1_1	Sn	0.00000	0.00000	0.00000	4
Sn1_2	Sn	0.16667	0.50000	0.00000	2
S1_1	S	0.06217	0.07225	0.50000	4
S1_2	S	0.93783	0.92775	0.50000	4
S1_3	S	0.10450	0.57225	0.50000	4
S2_1	S	0.11768	0.29875	0.00000	4
S2_2	S	0.88232	0.70125	0.00000	4
S2_3	S	0.04898	0.79875	0.00000	4
S3_1	S	0.00000	0.50000	0.00000	4
S3_2	S	0.16667	0.00000	0.00000	2

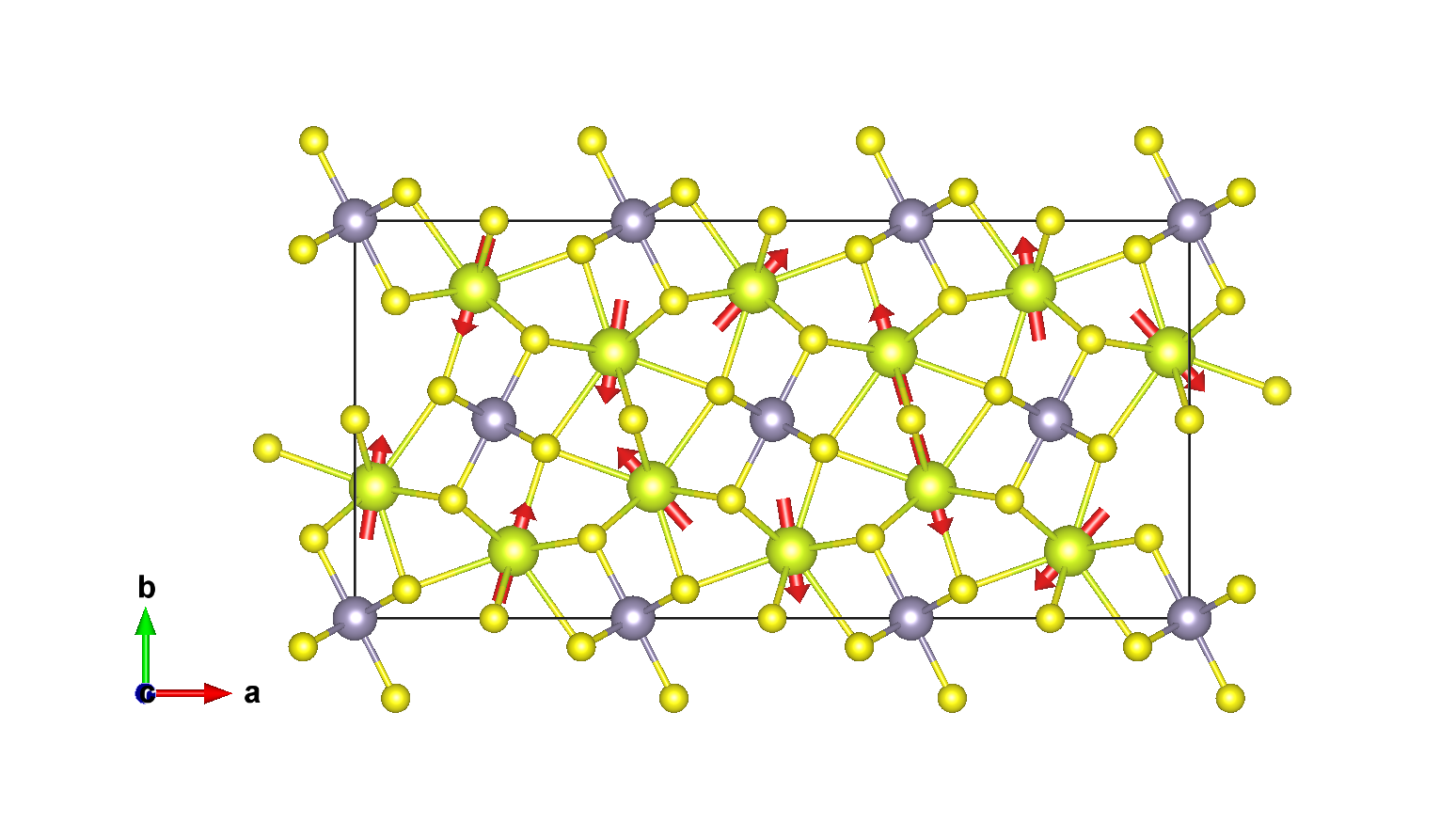

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ce1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.02324	0.33084	0.50000	m_x,m_y,0	0.20000	1.25000
2	0.52324	0.16916	0.50000	m_x,-m_y,0	0.20000	-1.25000
3	0.81009	0.83084	0.50000	-m_x,m_y,0	-0.20000	1.25000
4	0.31009	0.66916	0.50000	-m_x,-m_y,0	-0.20000	-1.25000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ce1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.97676	0.66916	0.50000	m_x,m_y,0	0.84000	-0.94600
2	0.47676	0.83084	0.50000	m_x,-m_y,0	0.84000	0.94600
3	0.85657	0.16916	0.50000	-m_x,m_y,0	-0.84000	-0.94600
4	0.35657	0.33084	0.50000	-m_x,-m_y,0	-0.84000	0.94600

Set of atoms in the unit cell related by symmetry with the magnetic atom Ce1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.14342	0.83084	0.50000	m_x,m_y,0	-0.35000	-1.21500
2	0.64342	0.66916	0.50000	m_x,-m_y,0	-0.35000	1.21500
3	0.68991	0.33084	0.50000	-m_x,m_y,0	0.35000	-1.21500
4	0.18991	0.16916	0.50000	-m_x,-m_y,0	0.35000	1.21500

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Sn1_1:

Set of atoms in the unit cell related by symmetry with the atom Sn1_2:

Atom	x	y	z
1	0.16667	0.50000	0.00000
2	0.66667	0.00000	0.00000

Set of atoms in the unit cell related by symmetry with the atom S1_1:

Set of atoms in the unit cell related by symmetry with the atom S1_2:

Set of atoms in the unit cell related by symmetry with the atom S1_3:

Set of atoms in the unit cell related by symmetry with the atom S2_1:

Set of atoms in the unit cell related by symmetry with the atom S2_2:

Set of atoms in the unit cell related by symmetry with the atom S2_3:

Set of atoms in the unit cell related by symmetry with the atom S3_1:

Set of atoms in the unit cell related by symmetry with the atom S3_2:

Atom	x	y	z
1	0.16667	0.00000	0.00000
2	0.66667	0.50000	0.00000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Ce1_1	Ce	0.02324	0.33084	0.50000	4	m_x,m_y,0	0.20(3)	1.250(10)	1.27
Ce1_2	Ce	0.97676	0.66916	0.50000	4	m_x,m_y,0	0.84(2)	-0.946(19)	1.27
Ce1_3	Ce	0.14342	0.83084	0.50000	4	m_x,m_y,0	-0.35(3)	-1.215(11)	1.26

MAGNDATA: A Collection of magnetic structures with portable cif-type files
