Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y+1/2,-z,+1	{ 2₀₁₀ \| 0 1/2 0 }
3	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
4	x,-y,-z,+1	{ 2₁₀₀ \| 0 }
5	-x,-y+1/2,-z,+1	{ -1 \| 0 1/2 0 }
6	x,-y,z,+1	{ m₀₁₀ \| 0 }
7	x,y,-z,+1	{ m₀₀₁ \| 0 }
8	-x,y+1/2,z,+1	{ m₁₀₀ \| 0 1/2 0 }
(0,1/2,0)' + set click here to show and hide
9	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
10	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
11	-x,-y,z,-1	{ 2'₀₀₁ \| 0 }
12	x,-y+1/2,-z,-1	{ 2'₁₀₀ \| 0 1/2 0 }
13	-x,-y,-z,-1	{ -1' \| 0 }
14	x,-y+1/2,z,-1	{ m'₀₁₀ \| 0 1/2 0 }
15	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
16	-x,y,z,-1	{ m'₁₀₀ \| 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,z,+1	2₀₀₁
4	x,-y,-z,+1	2₁₀₀
5	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
7	x,y,-z,+1	m₀₀₁
8	-x,y,z,+1	m₁₀₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,y,-z,-1	2'₀₁₀
11	-x,-y,z,-1	2'₀₀₁
12	x,-y,-z,-1	2'₁₀₀
13	-x,-y,-z,-1	-1'
14	x,-y,z,-1	m'₀₁₀
15	x,y,-z,-1	m'₀₀₁
16	-x,y,z,-1	m'₁₀₀

[Hide]

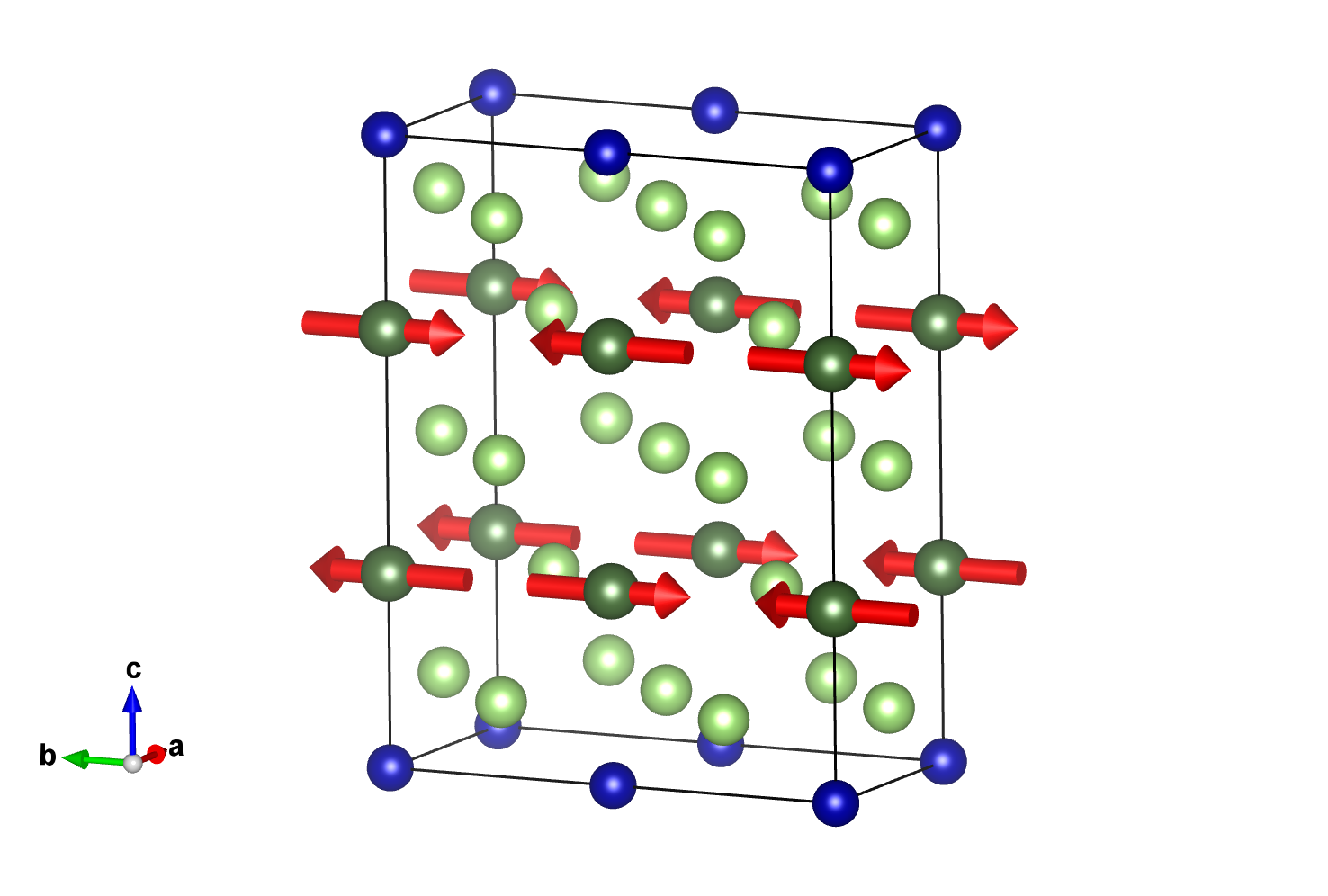

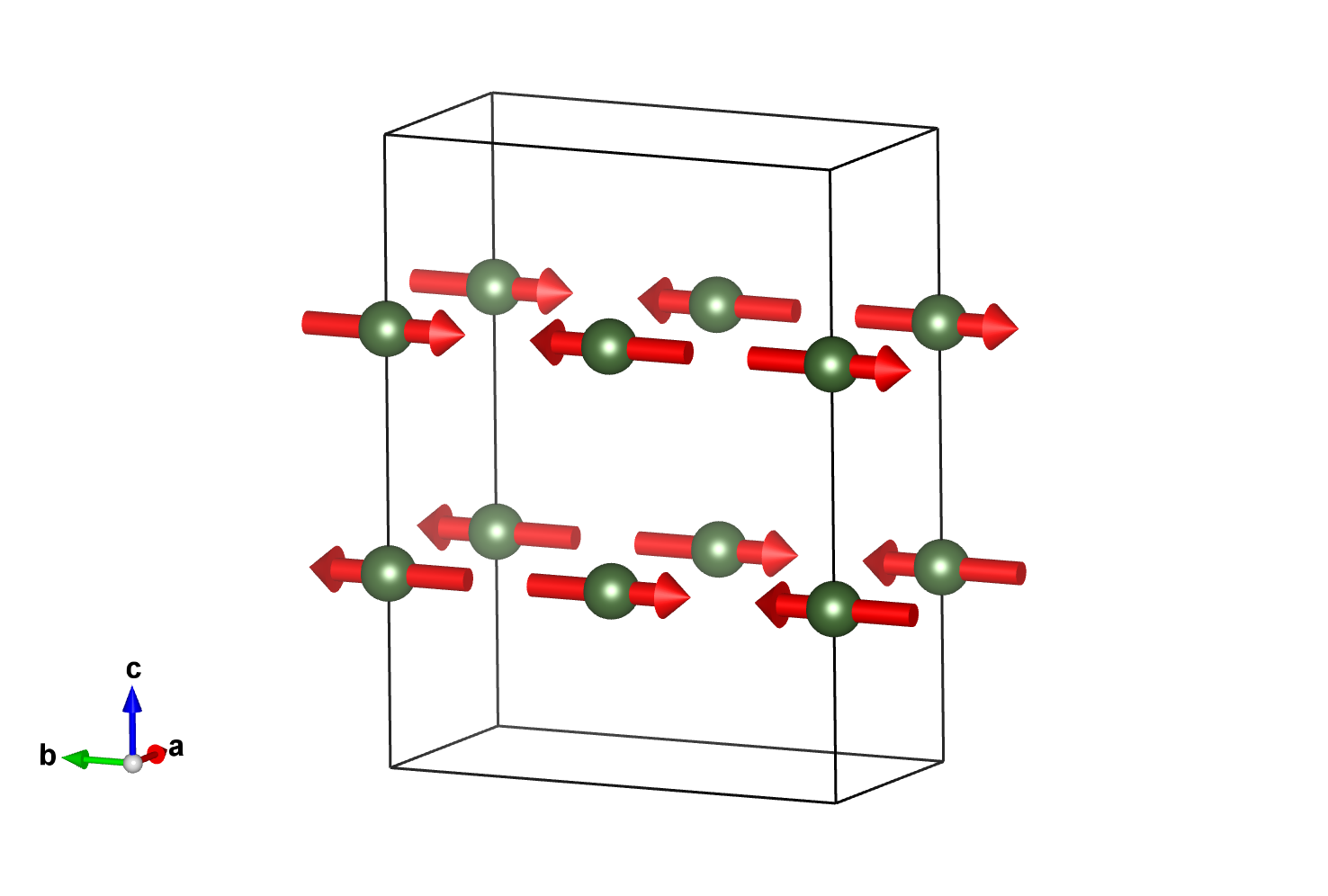

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Er1	Er	0.00000	0.00000	0.30680	4	0,m_y,0	0.0	4.71(3)	0.0	4.71

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Co1	Co	0.00000	0.00000	0.00000	2
Ga1_1	Ga	0.00000	0.25000	0.50000	2
Ga1_2	Ga	0.50000	0.00000	0.50000	2
Ga2	Ga	0.50000	0.25000	0.29520	4
Ga3_1	Ga	0.00000	0.25000	0.11770	4
Ga3_2	Ga	0.50000	0.00000	0.11770	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.30680	0,m_y,0	0.00000	4.71000	0.00000
2	0.00000	0.50000	0.69320	0,m_y,0	0.00000	4.71000	0.00000
(0,1/2,0)' + set click here to show and hide
3	0.00000	0.50000	0.30680	0,-m_y,0	0.00000	-4.71000	0.00000
4	0.00000	0.00000	0.69320	0,-m_y,0	0.00000	-4.71000	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.00000
(0,1/2,0)' + set click here to show and hide
2	0.00000	0.50000	0.00000

Atom	x	y	z
1	0.00000	0.25000	0.50000
(0,1/2,0)' + set click here to show and hide
2	0.00000	0.75000	0.50000

Atom	x	y	z
1	0.50000	0.00000	0.50000
(0,1/2,0)' + set click here to show and hide
2	0.50000	0.50000	0.50000

Atom	x	y	z
1	0.50000	0.25000	0.29520
2	0.50000	0.75000	0.70480
(0,1/2,0)' + set click here to show and hide
3	0.50000	0.75000	0.29520
4	0.50000	0.25000	0.70480

Atom	x	y	z
1	0.00000	0.25000	0.11770
2	0.00000	0.75000	0.88230
(0,1/2,0)' + set click here to show and hide
3	0.00000	0.75000	0.11770
4	0.00000	0.25000	0.88230

Atom	x	y	z
1	0.50000	0.00000	0.11770
2	0.50000	0.50000	0.88230
(0,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.11770
4	0.50000	0.00000	0.88230

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Er1	Er	0.00000	0.00000	0.30680	4	0,m_y,0	0.0	4.71(3)	0.0	4.71

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.30680	0,m_y,0	0.00000	4.71000	0.00000
2	0.00000	0.50000	0.69320	0,m_y,0	0.00000	4.71000	0.00000
(0,1/2,0)' + set click here to show and hide
3	0.00000	0.50000	0.30680	0,-m_y,0	0.00000	-4.71000	0.00000
4	0.00000	0.00000	0.69320	0,-m_y,0	0.00000	-4.71000	0.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mX3-	1	2	primary	1
