MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
3	-x+1/2,y,-z+1/2,+1	{ 2₀₁₀ \| 1/2 0 1/2 }
4	x+1/2,-y,-z+1/2,+1	{ 2₁₀₀ \| 1/2 0 1/2 }
5	-x,-y,-z,+1	{ -1 \| 0 }
6	x,y,-z,+1	{ m₀₀₁ \| 0 }
7	x+1/2,-y,z+1/2,+1	{ m₀₁₀ \| 1/2 0 1/2 }
8	-x+1/2,y,z+1/2,+1	{ m₁₀₀ \| 1/2 0 1/2 }
(0,1/2,1/2) + set click here to show and hide
9	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
10	-x,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 0 1/2 1/2 }
11	-x+1/2,y+1/2,-z,+1	{ 2₀₁₀ \| 1/2 1/2 0 }
12	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
13	-x,-y+1/2,-z+1/2,+1	{ -1 \| 0 1/2 1/2 }
14	x,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 0 1/2 1/2 }
15	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
16	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
(1/2,1/2,0)' + set click here to show and hide
17	x+1/2,y+1/2,z,-1	{ 1' \| 1/2 1/2 0 }
18	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
19	-x,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 0 1/2 1/2 }
20	x,-y+1/2,-z+1/2,-1	{ 2'₁₀₀ \| 0 1/2 1/2 }
21	-x+1/2,-y+1/2,-z,-1	{ -1' \| 1/2 1/2 0 }
22	x+1/2,y+1/2,-z,-1	{ m'₀₀₁ \| 1/2 1/2 0 }
23	x,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 0 1/2 1/2 }
24	-x,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 0 1/2 1/2 }
(1/2,0,1/2)' + set click here to show and hide
25	x+1/2,y,z+1/2,-1	{ 1' \| 1/2 0 1/2 }
26	-x+1/2,-y,z+1/2,-1	{ 2'₀₀₁ \| 1/2 0 1/2 }
27	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
28	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
29	-x+1/2,-y,-z+1/2,-1	{ -1' \| 1/2 0 1/2 }
30	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }
31	x,-y,z,-1	{ m'₀₁₀ \| 0 }
32	-x,y,z,-1	{ m'₁₀₀ \| 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,z,+1	2₀₀₁
3	-x,y,-z,+1	2₀₁₀
4	x,-y,-z,+1	2₁₀₀
5	-x,-y,-z,+1	-1
6	x,y,-z,+1	m₀₀₁
7	x,-y,z,+1	m₀₁₀
8	-x,y,z,+1	m₁₀₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,-y,z,-1	2'₀₀₁
11	-x,y,-z,-1	2'₀₁₀
12	x,-y,-z,-1	2'₁₀₀
13	-x,-y,-z,-1	-1'
14	x,y,-z,-1	m'₀₀₁
15	x,-y,z,-1	m'₀₁₀
16	-x,y,z,-1	m'₁₀₀

[Hide]

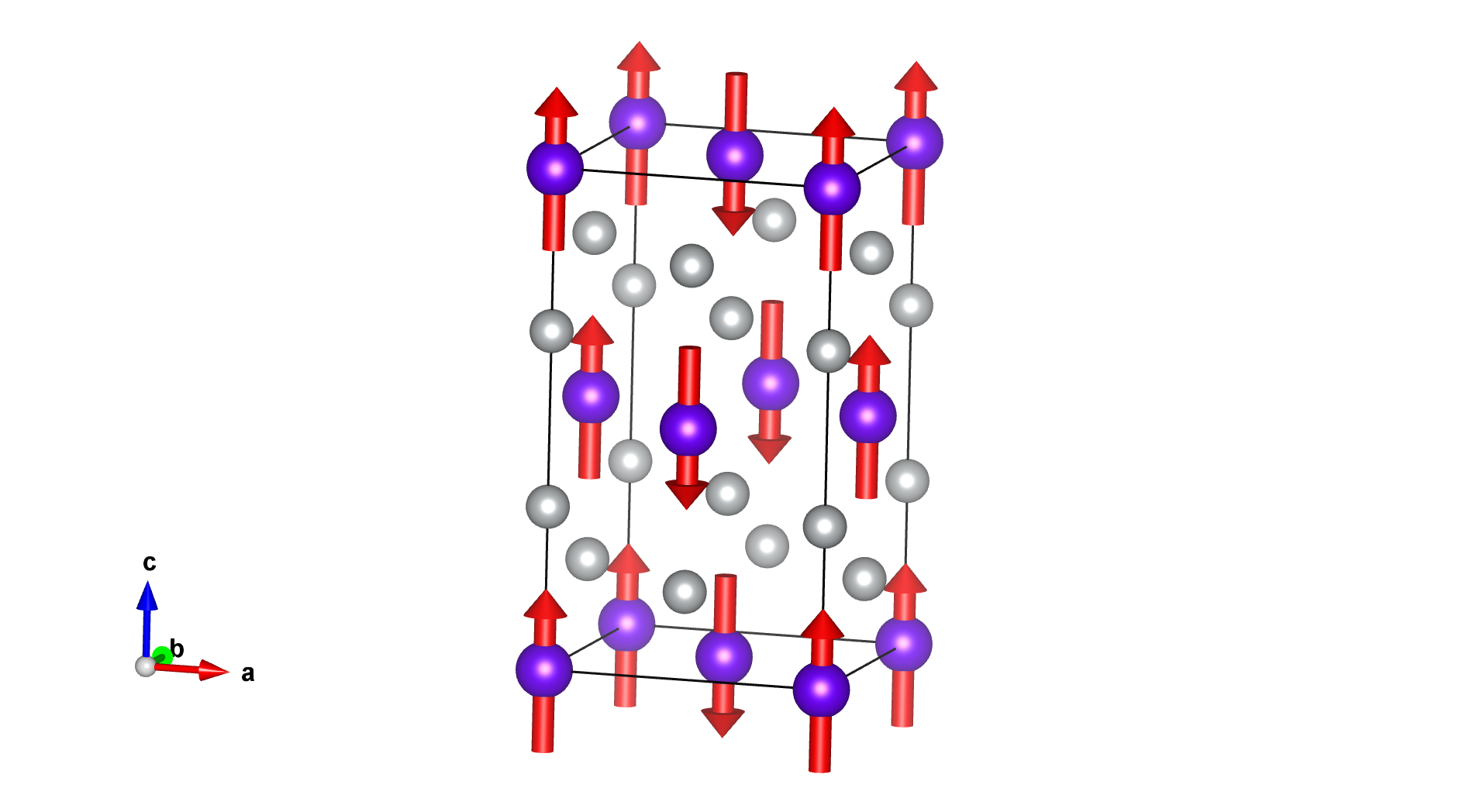

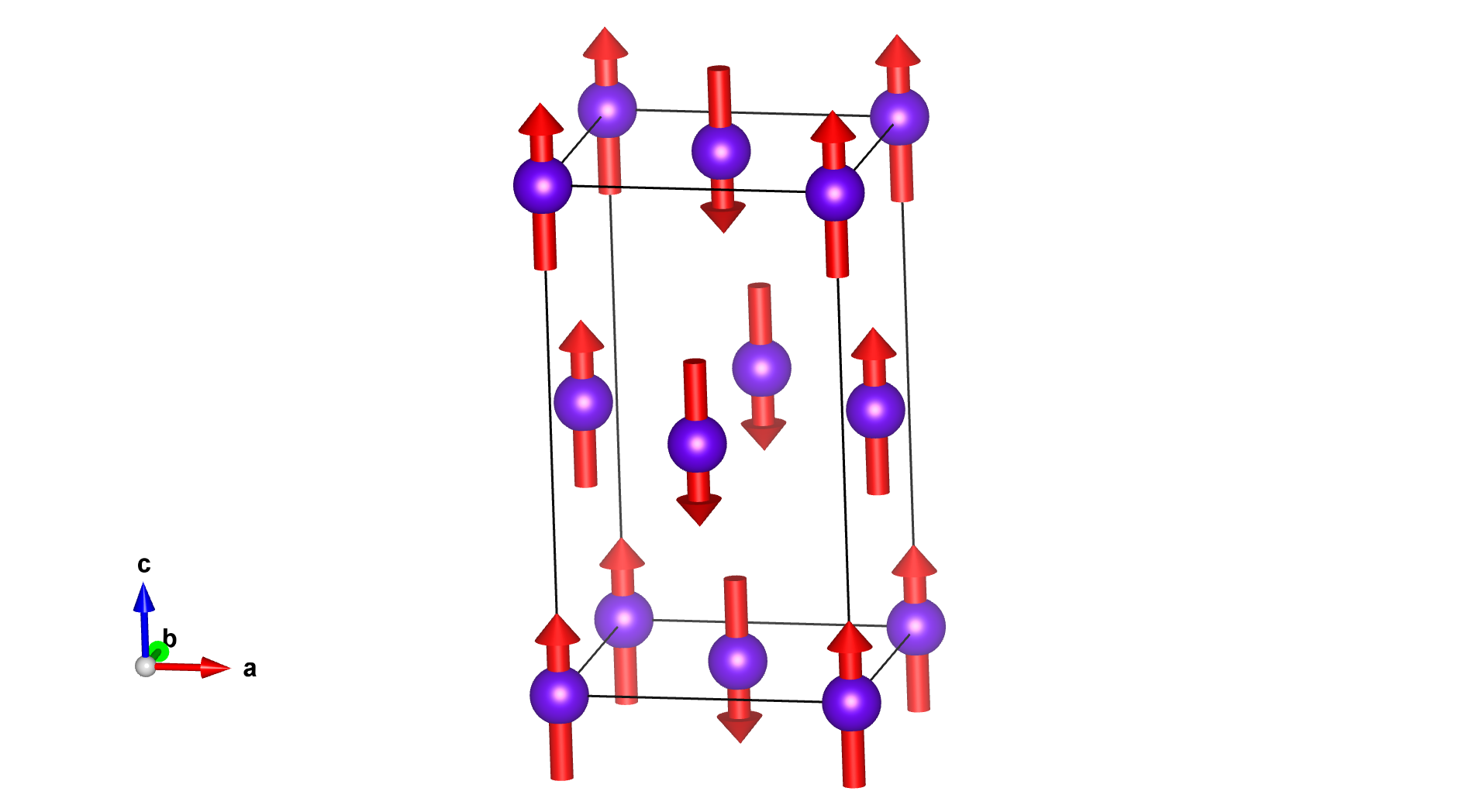

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tb1	Tb	0.00000	0.00000	0.00000	1	0,0,m_z	0.0	0.0	8.95(5	8.95

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ag1	Ag	0.00000	0.00000	0.32500	8

Atom	x	y	z
1	0.00000	0.00000	0.32500
2	0.50000	0.00000	0.17500
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.82500
4	0.50000	0.50000	0.67500
(1/2,1/2,0)' + set click here to show and hide
5	0.50000	0.50000	0.32500
6	0.00000	0.50000	0.17500
(1/2,0,1/2)' + set click here to show and hide
7	0.50000	0.00000	0.82500
8	0.00000	0.00000	0.67500

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tb1	Tb	0.00000	0.00000	0.00000	1	0,0,m_z	0.0	0.0	8.95(5	8.95

label	dim. small irrep	dim. full irrep	action	number of modes
mX2+	1	2	primary	1
