MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/4,-y+1/2,z+1/4,-1	{ m'₀₁₀ \| 1/4 1/2 1/4 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	-x+3/4,y+1/2,-z+3/4,-1	{ 2'₀₁₀ \| 3/4 1/2 3/4 }
(1/2,0,1/2) + set click here to show and hide
5	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
6	x+3/4,-y+1/2,z+3/4,-1	{ m'₀₁₀ \| 3/4 1/2 3/4 }
7	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
8	-x+1/4,y+1/2,-z+1/4,-1	{ 2'₀₁₀ \| 1/4 1/2 1/4 }
(1/2,0,0)' + set click here to show and hide
9	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
10	x+3/4,-y+1/2,z+1/4,+1	{ m₀₁₀ \| 3/4 1/2 1/4 }
11	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
12	-x+1/4,y+1/2,-z+3/4,+1	{ 2₀₁₀ \| 1/4 1/2 3/4 }
(0,0,1/2)' + set click here to show and hide
13	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
14	x+1/4,-y+1/2,z+3/4,+1	{ m₀₁₀ \| 1/4 1/2 3/4 }
15	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
16	-x+3/4,y+1/2,-z+1/4,+1	{ 2₀₁₀ \| 3/4 1/2 1/4 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
3	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
8	-x,y,-z,+1	2₀₁₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-x,-y,-z,-1	-1'
7	x,-y,z,-1	m'₀₁₀
8	-x,y,-z,-1	2'₀₁₀

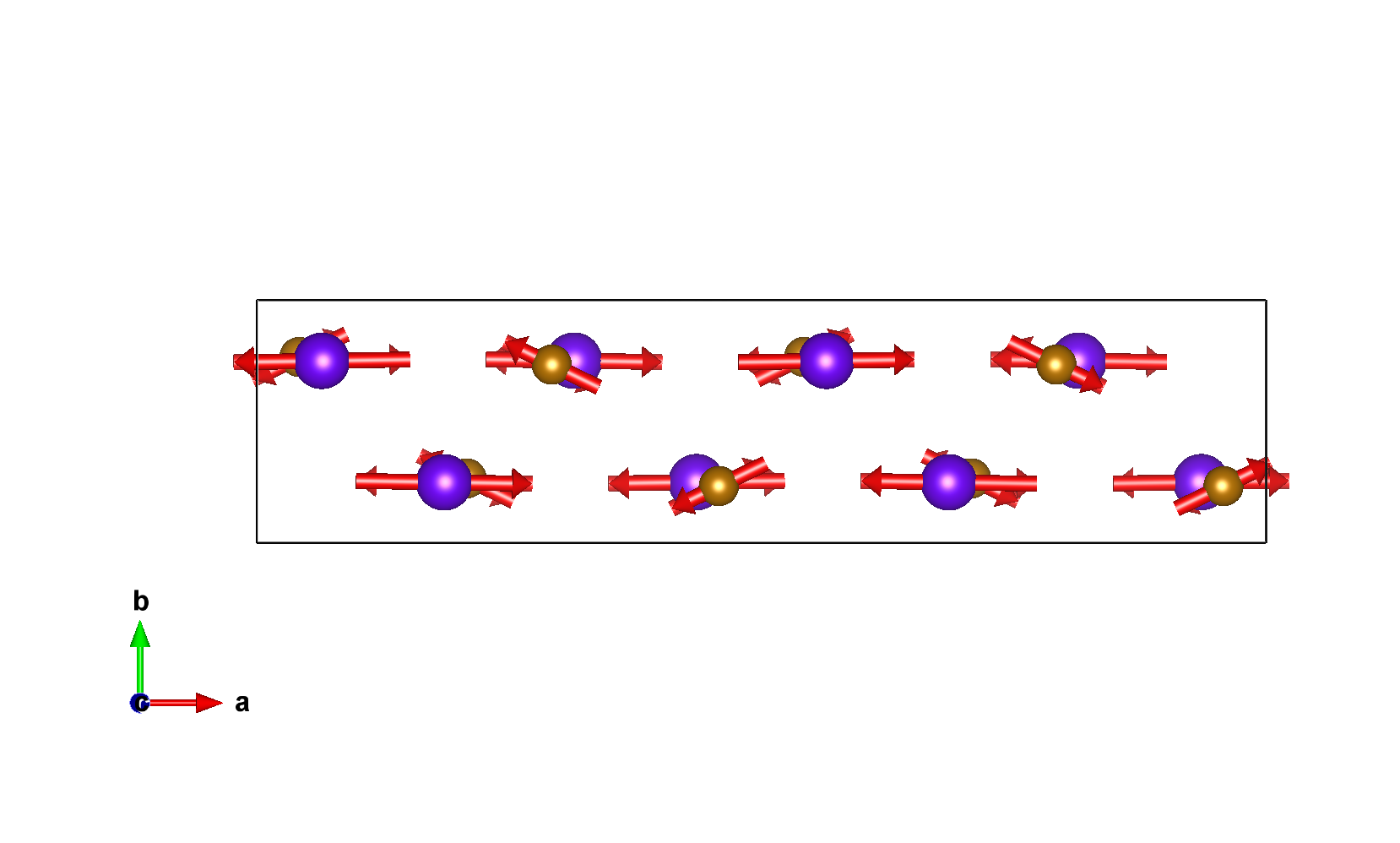

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tb	Tb	0.43565	0.25040	0.11295	16	m_x.m_y,m_z,	8.31(3)	0.13(5)	-0.03(4)	8.31
Fe	Fe	0.45776	0.23420	0.37990	16	m_x.m_y,m_z,	4.05(5)	1.96(5)	0.18(8)	4.50

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ba1	Ba	0.07930	0.26110	0.01170	16
Ba2	Ba	0.05825	0.25470	0.25355	16
O1	O	0.43850	0.26540	0.26245	16
O2	O	0.15755	0.23090	0.21185	16
O3	O	0.11345	0.06000	0.37920	16
O4	O	0.26215	0.04950	0.14415	16
O5	O	0.23795	0.54370	0.13600	16

[Show all atoms in unit cell and their moment relations]

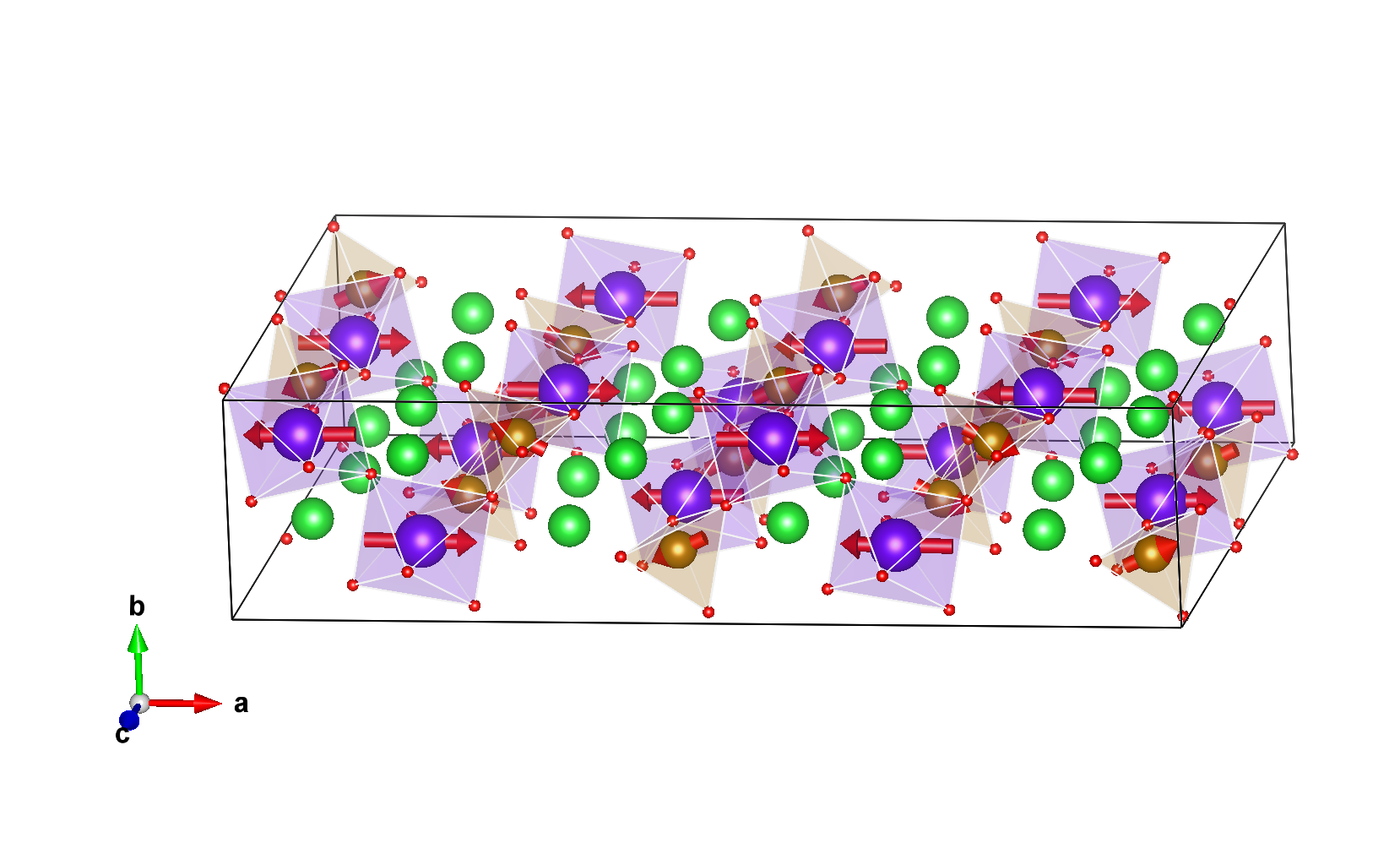

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Tb:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.43565	0.25040	0.11295	m_x,m_z,0	8.31000	0.13000	-0.03000
2	0.68565	0.24960	0.36295	m_x,-m_z,0	8.31000	-0.13000	-0.03000
3	0.56435	0.74960	0.88705	m_x,m_z,0	8.31000	0.13000	-0.03000
4	0.31435	0.75040	0.63705	m_x,-m_z,0	8.31000	-0.13000	-0.03000
(1/2,0,1/2) + set click here to show and hide
5	0.93565	0.25040	0.61295	m_x,m_z,0	8.31000	0.13000	-0.03000
6	0.18565	0.24960	0.86295	m_x,-m_z,0	8.31000	-0.13000	-0.03000
7	0.06435	0.74960	0.38705	m_x,m_z,0	8.31000	0.13000	-0.03000
8	0.81435	0.75040	0.13705	m_x,-m_z,0	8.31000	-0.13000	-0.03000
(1/2,0,0)' + set click here to show and hide
9	0.93565	0.25040	0.11295	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
10	0.18565	0.24960	0.36295	-m_x,m_z,0	-8.31000	0.13000	0.03000
11	0.06435	0.74960	0.88705	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
12	0.81435	0.75040	0.63705	-m_x,m_z,0	-8.31000	0.13000	0.03000
(0,0,1/2)' + set click here to show and hide
13	0.43565	0.25040	0.61295	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
14	0.68565	0.24960	0.86295	-m_x,m_z,0	-8.31000	0.13000	0.03000
15	0.56435	0.74960	0.38705	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
16	0.31435	0.75040	0.13705	-m_x,m_z,0	-8.31000	0.13000	0.03000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.45776	0.23420	0.37990	m_x,m_z,0	4.05000	1.96000	0.18000
2	0.70776	0.26580	0.62990	m_x,-m_z,0	4.05000	-1.96000	0.18000
3	0.54224	0.76580	0.62010	m_x,m_z,0	4.05000	1.96000	0.18000
4	0.29224	0.73420	0.37010	m_x,-m_z,0	4.05000	-1.96000	0.18000
(1/2,0,1/2) + set click here to show and hide
5	0.95776	0.23420	0.87990	m_x,m_z,0	4.05000	1.96000	0.18000
6	0.20776	0.26580	0.12990	m_x,-m_z,0	4.05000	-1.96000	0.18000
7	0.04224	0.76580	0.12010	m_x,m_z,0	4.05000	1.96000	0.18000
8	0.79224	0.73420	0.87010	m_x,-m_z,0	4.05000	-1.96000	0.18000
(1/2,0,0)' + set click here to show and hide
9	0.95776	0.23420	0.37990	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
10	0.20776	0.26580	0.62990	-m_x,m_z,0	-4.05000	1.96000	-0.18000
11	0.04224	0.76580	0.62010	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
12	0.79224	0.73420	0.37010	-m_x,m_z,0	-4.05000	1.96000	-0.18000
(0,0,1/2)' + set click here to show and hide
13	0.45776	0.23420	0.87990	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
14	0.70776	0.26580	0.12990	-m_x,m_z,0	-4.05000	1.96000	-0.18000
15	0.54224	0.76580	0.12010	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
16	0.29224	0.73420	0.87010	-m_x,m_z,0	-4.05000	1.96000	-0.18000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ba1:

Atom	x	y	z
1	0.07930	0.26110	0.01170
2	0.32930	0.23890	0.26170
3	0.92070	0.73890	0.98830
4	0.67070	0.76110	0.73830
(1/2,0,1/2) + set click here to show and hide
5	0.57930	0.26110	0.51170
6	0.82930	0.23890	0.76170
7	0.42070	0.73890	0.48830
8	0.17070	0.76110	0.23830
(1/2,0,0)' + set click here to show and hide
9	0.57930	0.26110	0.01170
10	0.82930	0.23890	0.26170
11	0.42070	0.73890	0.98830
12	0.17070	0.76110	0.73830
(0,0,1/2)' + set click here to show and hide
13	0.07930	0.26110	0.51170
14	0.32930	0.23890	0.76170
15	0.92070	0.73890	0.48830
16	0.67070	0.76110	0.23830

Set of atoms in the unit cell related by symmetry with the atom Ba2:

Atom	x	y	z
1	0.05825	0.25470	0.25355
2	0.30825	0.24530	0.50355
3	0.94175	0.74530	0.74645
4	0.69175	0.75470	0.49645
(1/2,0,1/2) + set click here to show and hide
5	0.55825	0.25470	0.75355
6	0.80825	0.24530	0.00355
7	0.44175	0.74530	0.24645
8	0.19175	0.75470	0.99645
(1/2,0,0)' + set click here to show and hide
9	0.55825	0.25470	0.25355
10	0.80825	0.24530	0.50355
11	0.44175	0.74530	0.74645
12	0.19175	0.75470	0.49645
(0,0,1/2)' + set click here to show and hide
13	0.05825	0.25470	0.75355
14	0.30825	0.24530	0.00355
15	0.94175	0.74530	0.24645
16	0.69175	0.75470	0.99645

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.43850	0.26540	0.26245
2	0.68850	0.23460	0.51245
3	0.56150	0.73460	0.73755
4	0.31150	0.76540	0.48755
(1/2,0,1/2) + set click here to show and hide
5	0.93850	0.26540	0.76245
6	0.18850	0.23460	0.01245
7	0.06150	0.73460	0.23755
8	0.81150	0.76540	0.98755
(1/2,0,0)' + set click here to show and hide
9	0.93850	0.26540	0.26245
10	0.18850	0.23460	0.51245
11	0.06150	0.73460	0.73755
12	0.81150	0.76540	0.48755
(0,0,1/2)' + set click here to show and hide
13	0.43850	0.26540	0.76245
14	0.68850	0.23460	0.01245
15	0.56150	0.73460	0.23755
16	0.31150	0.76540	0.98755

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.15755	0.23090	0.21185
2	0.40755	0.26910	0.46185
3	0.84245	0.76910	0.78815
4	0.59245	0.73090	0.53815
(1/2,0,1/2) + set click here to show and hide
5	0.65755	0.23090	0.71185
6	0.90755	0.26910	0.96185
7	0.34245	0.76910	0.28815
8	0.09245	0.73090	0.03815
(1/2,0,0)' + set click here to show and hide
9	0.65755	0.23090	0.21185
10	0.90755	0.26910	0.46185
11	0.34245	0.76910	0.78815
12	0.09245	0.73090	0.53815
(0,0,1/2)' + set click here to show and hide
13	0.15755	0.23090	0.71185
14	0.40755	0.26910	0.96185
15	0.84245	0.76910	0.28815
16	0.59245	0.73090	0.03815

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.11345	0.06000	0.37920
2	0.36345	0.44000	0.62920
3	0.88655	0.94000	0.62080
4	0.63655	0.56000	0.37080
(1/2,0,1/2) + set click here to show and hide
5	0.61345	0.06000	0.87920
6	0.86345	0.44000	0.12920
7	0.38655	0.94000	0.12080
8	0.13655	0.56000	0.87080
(1/2,0,0)' + set click here to show and hide
9	0.61345	0.06000	0.37920
10	0.86345	0.44000	0.62920
11	0.38655	0.94000	0.62080
12	0.13655	0.56000	0.37080
(0,0,1/2)' + set click here to show and hide
13	0.11345	0.06000	0.87920
14	0.36345	0.44000	0.12920
15	0.88655	0.94000	0.12080
16	0.63655	0.56000	0.87080

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.26215	0.04950	0.14415
2	0.51215	0.45050	0.39415
3	0.73785	0.95050	0.85585
4	0.48785	0.54950	0.60585
(1/2,0,1/2) + set click here to show and hide
5	0.76215	0.04950	0.64415
6	0.01215	0.45050	0.89415
7	0.23785	0.95050	0.35585
8	0.98785	0.54950	0.10585
(1/2,0,0)' + set click here to show and hide
9	0.76215	0.04950	0.14415
10	0.01215	0.45050	0.39415
11	0.23785	0.95050	0.85585
12	0.98785	0.54950	0.60585
(0,0,1/2)' + set click here to show and hide
13	0.26215	0.04950	0.64415
14	0.51215	0.45050	0.89415
15	0.73785	0.95050	0.35585
16	0.48785	0.54950	0.10585

Set of atoms in the unit cell related by symmetry with the atom O5:

Atom	x	y	z
1	0.23795	0.54370	0.13600
2	0.48795	0.95630	0.38600
3	0.76205	0.45630	0.86400
4	0.51205	0.04370	0.61400
(1/2,0,1/2) + set click here to show and hide
5	0.73795	0.54370	0.63600
6	0.98795	0.95630	0.88600
7	0.26205	0.45630	0.36400
8	0.01205	0.04370	0.11400
(1/2,0,0)' + set click here to show and hide
9	0.73795	0.54370	0.13600
10	0.98795	0.95630	0.38600
11	0.26205	0.45630	0.86400
12	0.01205	0.04370	0.61400
(0,0,1/2)' + set click here to show and hide
13	0.23795	0.54370	0.63600
14	0.48795	0.95630	0.88600
15	0.76205	0.45630	0.36400
16	0.51205	0.04370	0.11400

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tb	Tb	0.43565	0.25040	0.11295	16	m_x.m_y,m_z,	8.31(3)	0.13(5)	-0.03(4)	8.31
Fe	Fe	0.45776	0.23420	0.37990	16	m_x.m_y,m_z,	4.05(5)	1.96(5)	0.18(8)	4.50

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Tb:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.43565	0.25040	0.11295	m_x,m_z,0	8.31000	0.13000	-0.03000
2	0.68565	0.24960	0.36295	m_x,-m_z,0	8.31000	-0.13000	-0.03000
3	0.56435	0.74960	0.88705	m_x,m_z,0	8.31000	0.13000	-0.03000
4	0.31435	0.75040	0.63705	m_x,-m_z,0	8.31000	-0.13000	-0.03000
(1/2,0,1/2) + set click here to show and hide
5	0.93565	0.25040	0.61295	m_x,m_z,0	8.31000	0.13000	-0.03000
6	0.18565	0.24960	0.86295	m_x,-m_z,0	8.31000	-0.13000	-0.03000
7	0.06435	0.74960	0.38705	m_x,m_z,0	8.31000	0.13000	-0.03000
8	0.81435	0.75040	0.13705	m_x,-m_z,0	8.31000	-0.13000	-0.03000
(1/2,0,0)' + set click here to show and hide
9	0.93565	0.25040	0.11295	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
10	0.18565	0.24960	0.36295	-m_x,m_z,0	-8.31000	0.13000	0.03000
11	0.06435	0.74960	0.88705	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
12	0.81435	0.75040	0.63705	-m_x,m_z,0	-8.31000	0.13000	0.03000
(0,0,1/2)' + set click here to show and hide
13	0.43565	0.25040	0.61295	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
14	0.68565	0.24960	0.86295	-m_x,m_z,0	-8.31000	0.13000	0.03000
15	0.56435	0.74960	0.38705	-m_x,-m_z,0	-8.31000	-0.13000	0.03000
16	0.31435	0.75040	0.13705	-m_x,m_z,0	-8.31000	0.13000	0.03000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.45776	0.23420	0.37990	m_x,m_z,0	4.05000	1.96000	0.18000
2	0.70776	0.26580	0.62990	m_x,-m_z,0	4.05000	-1.96000	0.18000
3	0.54224	0.76580	0.62010	m_x,m_z,0	4.05000	1.96000	0.18000
4	0.29224	0.73420	0.37010	m_x,-m_z,0	4.05000	-1.96000	0.18000
(1/2,0,1/2) + set click here to show and hide
5	0.95776	0.23420	0.87990	m_x,m_z,0	4.05000	1.96000	0.18000
6	0.20776	0.26580	0.12990	m_x,-m_z,0	4.05000	-1.96000	0.18000
7	0.04224	0.76580	0.12010	m_x,m_z,0	4.05000	1.96000	0.18000
8	0.79224	0.73420	0.87010	m_x,-m_z,0	4.05000	-1.96000	0.18000
(1/2,0,0)' + set click here to show and hide
9	0.95776	0.23420	0.37990	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
10	0.20776	0.26580	0.62990	-m_x,m_z,0	-4.05000	1.96000	-0.18000
11	0.04224	0.76580	0.62010	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
12	0.79224	0.73420	0.37010	-m_x,m_z,0	-4.05000	1.96000	-0.18000
(0,0,1/2)' + set click here to show and hide
13	0.45776	0.23420	0.87990	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
14	0.70776	0.26580	0.12990	-m_x,m_z,0	-4.05000	1.96000	-0.18000
15	0.54224	0.76580	0.12010	-m_x,-m_z,0	-4.05000	-1.96000	-0.18000
16	0.29224	0.73420	0.87010	-m_x,m_z,0	-4.05000	1.96000	-0.18000

[Hide]

label	dim. small irrep	dim. full irrep	action	number of modes
mY1+	1	1	primary	6

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Ba₂TbFeO₅ (#1.864)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Ba2TbFeO5 (#1.864)

Ba₂TbFeO₅ (#1.864)
