MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/4,-y+1/2,z+1/4,-1	{ m'₀₁₀ \| 1/4 1/2 1/4 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	-x+3/4,y+1/2,-z+3/4,-1	{ 2'₀₁₀ \| 3/4 1/2 3/4 }
(1/2,0,1/2) + set click here to show and hide
5	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
6	x+3/4,-y+1/2,z+3/4,-1	{ m'₀₁₀ \| 3/4 1/2 3/4 }
7	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
8	-x+1/4,y+1/2,-z+1/4,-1	{ 2'₀₁₀ \| 1/4 1/2 1/4 }
(1/2,0,0)' + set click here to show and hide
9	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
10	x+3/4,-y+1/2,z+1/4,+1	{ m₀₁₀ \| 3/4 1/2 1/4 }
11	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
12	-x+1/4,y+1/2,-z+3/4,+1	{ 2₀₁₀ \| 1/4 1/2 3/4 }
(0,0,1/2)' + set click here to show and hide
13	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
14	x+1/4,-y+1/2,z+3/4,+1	{ m₀₁₀ \| 1/4 1/2 3/4 }
15	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
16	-x+3/4,y+1/2,-z+1/4,+1	{ 2₀₁₀ \| 3/4 1/2 1/4 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
3	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
8	-x,y,-z,+1	2₀₁₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-x,-y,-z,-1	-1'
7	x,-y,z,-1	m'₀₁₀
8	-x,y,-z,-1	2'₀₁₀

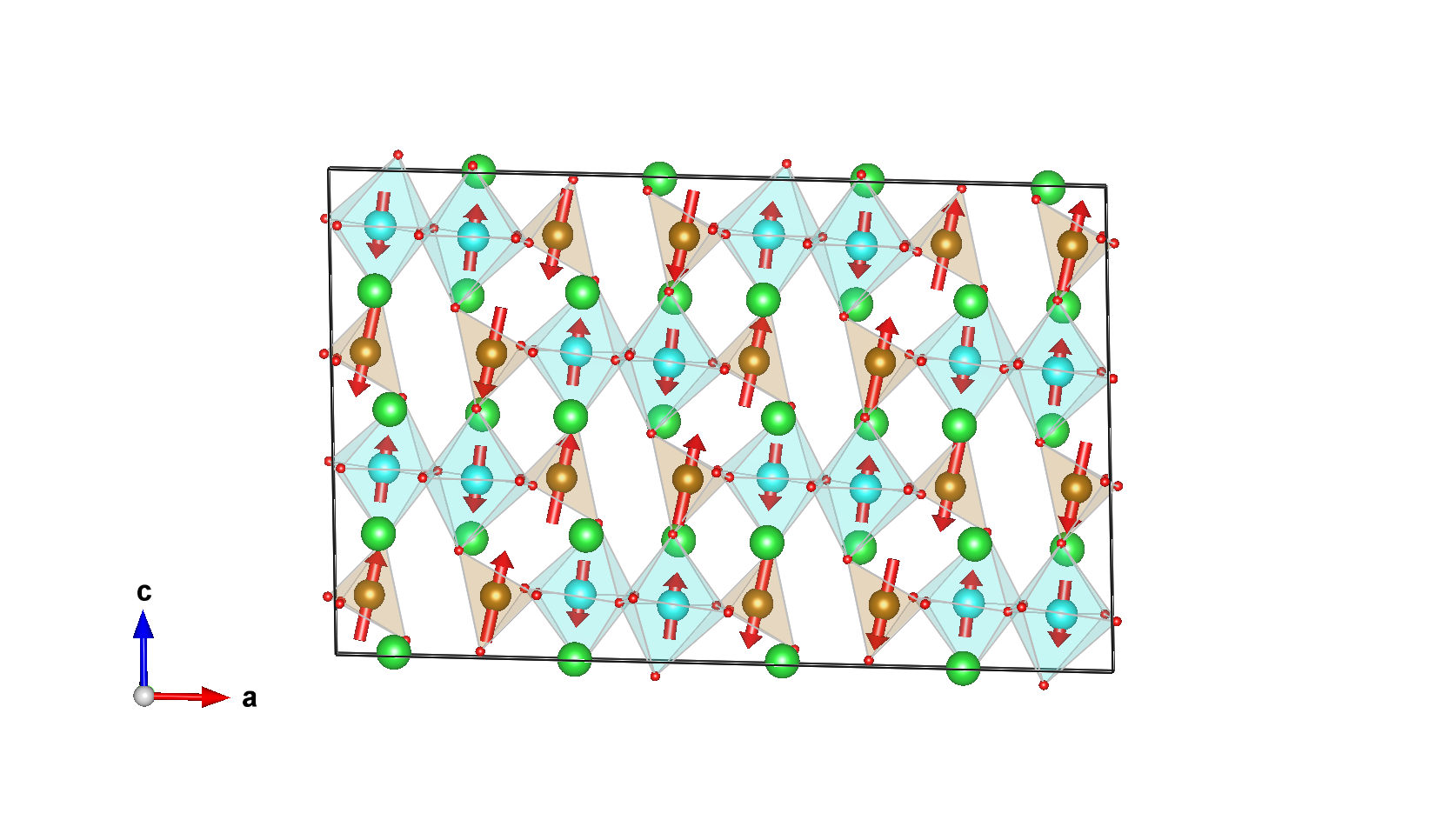

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Yb	Yb	0.43515	0.25339	0.11703	16	m_x.m_y,m_z,	0.40(5)	0.06(12)	2.96(3)	2.97
Fe	Fe	0.45669	0.24383	0.37789	16	m_x.m_y,m_z,	0.92(4)	0.22(16)	4.01(4)	4.09

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ba1	Ba	0.07453	0.24612	0.00743	16
Ba2	Ba	0.05722	0.24976	0.25111	16
O1	O	0.43596	0.26801	0.26321	16
O2	O	0.16063	0.22787	0.22038	16
O3	O	0.11561	0.05220	0.36867	16
O4	O	0.25972	0.03295	0.13256	16
O5	O	0.24380	0.52108	0.14386	16

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.43515	0.25339	0.11703	m_x,m_z,0	0.40000	0.06000	2.96000
2	0.68515	0.24661	0.36703	m_x,-m_z,0	0.40000	-0.06000	2.96000
3	0.56485	0.74661	0.88297	m_x,m_z,0	0.40000	0.06000	2.96000
4	0.31485	0.75339	0.63297	m_x,-m_z,0	0.40000	-0.06000	2.96000
(1/2,0,1/2) + set click here to show and hide
5	0.93515	0.25339	0.61703	m_x,m_z,0	0.40000	0.06000	2.96000
6	0.18515	0.24661	0.86703	m_x,-m_z,0	0.40000	-0.06000	2.96000
7	0.06485	0.74661	0.38297	m_x,m_z,0	0.40000	0.06000	2.96000
8	0.81485	0.75339	0.13297	m_x,-m_z,0	0.40000	-0.06000	2.96000
(1/2,0,0)' + set click here to show and hide
9	0.93515	0.25339	0.11703	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
10	0.18515	0.24661	0.36703	-m_x,m_z,0	-0.40000	0.06000	-2.96000
11	0.06485	0.74661	0.88297	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
12	0.81485	0.75339	0.63297	-m_x,m_z,0	-0.40000	0.06000	-2.96000
(0,0,1/2)' + set click here to show and hide
13	0.43515	0.25339	0.61703	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
14	0.68515	0.24661	0.86703	-m_x,m_z,0	-0.40000	0.06000	-2.96000
15	0.56485	0.74661	0.38297	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
16	0.31485	0.75339	0.13297	-m_x,m_z,0	-0.40000	0.06000	-2.96000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.45669	0.24383	0.37789	m_x,m_z,0	0.92000	0.22000	4.01000
2	0.70669	0.25617	0.62789	m_x,-m_z,0	0.92000	-0.22000	4.01000
3	0.54331	0.75617	0.62211	m_x,m_z,0	0.92000	0.22000	4.01000
4	0.29331	0.74383	0.37211	m_x,-m_z,0	0.92000	-0.22000	4.01000
(1/2,0,1/2) + set click here to show and hide
5	0.95669	0.24383	0.87789	m_x,m_z,0	0.92000	0.22000	4.01000
6	0.20669	0.25617	0.12789	m_x,-m_z,0	0.92000	-0.22000	4.01000
7	0.04331	0.75617	0.12211	m_x,m_z,0	0.92000	0.22000	4.01000
8	0.79331	0.74383	0.87211	m_x,-m_z,0	0.92000	-0.22000	4.01000
(1/2,0,0)' + set click here to show and hide
9	0.95669	0.24383	0.37789	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
10	0.20669	0.25617	0.62789	-m_x,m_z,0	-0.92000	0.22000	-4.01000
11	0.04331	0.75617	0.62211	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
12	0.79331	0.74383	0.37211	-m_x,m_z,0	-0.92000	0.22000	-4.01000
(0,0,1/2)' + set click here to show and hide
13	0.45669	0.24383	0.87789	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
14	0.70669	0.25617	0.12789	-m_x,m_z,0	-0.92000	0.22000	-4.01000
15	0.54331	0.75617	0.12211	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
16	0.29331	0.74383	0.87211	-m_x,m_z,0	-0.92000	0.22000	-4.01000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ba1:

Atom	x	y	z
1	0.07453	0.24612	0.00743
2	0.32453	0.25388	0.25743
3	0.92547	0.75388	0.99257
4	0.67547	0.74612	0.74257
(1/2,0,1/2) + set click here to show and hide
5	0.57453	0.24612	0.50743
6	0.82453	0.25388	0.75743
7	0.42547	0.75388	0.49257
8	0.17547	0.74612	0.24257
(1/2,0,0)' + set click here to show and hide
9	0.57453	0.24612	0.00743
10	0.82453	0.25388	0.25743
11	0.42547	0.75388	0.99257
12	0.17547	0.74612	0.74257
(0,0,1/2)' + set click here to show and hide
13	0.07453	0.24612	0.50743
14	0.32453	0.25388	0.75743
15	0.92547	0.75388	0.49257
16	0.67547	0.74612	0.24257

Set of atoms in the unit cell related by symmetry with the atom Ba2:

Atom	x	y	z
1	0.05722	0.24976	0.25111
2	0.30722	0.25024	0.50111
3	0.94278	0.75024	0.74889
4	0.69278	0.74976	0.49889
(1/2,0,1/2) + set click here to show and hide
5	0.55722	0.24976	0.75111
6	0.80722	0.25024	0.00111
7	0.44278	0.75024	0.24889
8	0.19278	0.74976	0.99889
(1/2,0,0)' + set click here to show and hide
9	0.55722	0.24976	0.25111
10	0.80722	0.25024	0.50111
11	0.44278	0.75024	0.74889
12	0.19278	0.74976	0.49889
(0,0,1/2)' + set click here to show and hide
13	0.05722	0.24976	0.75111
14	0.30722	0.25024	0.00111
15	0.94278	0.75024	0.24889
16	0.69278	0.74976	0.99889

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.43596	0.26801	0.26321
2	0.68596	0.23199	0.51321
3	0.56404	0.73199	0.73679
4	0.31404	0.76801	0.48679
(1/2,0,1/2) + set click here to show and hide
5	0.93596	0.26801	0.76321
6	0.18596	0.23199	0.01321
7	0.06404	0.73199	0.23679
8	0.81404	0.76801	0.98679
(1/2,0,0)' + set click here to show and hide
9	0.93596	0.26801	0.26321
10	0.18596	0.23199	0.51321
11	0.06404	0.73199	0.73679
12	0.81404	0.76801	0.48679
(0,0,1/2)' + set click here to show and hide
13	0.43596	0.26801	0.76321
14	0.68596	0.23199	0.01321
15	0.56404	0.73199	0.23679
16	0.31404	0.76801	0.98679

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.16063	0.22787	0.22038
2	0.41063	0.27213	0.47038
3	0.83937	0.77213	0.77962
4	0.58937	0.72787	0.52962
(1/2,0,1/2) + set click here to show and hide
5	0.66063	0.22787	0.72038
6	0.91063	0.27213	0.97038
7	0.33937	0.77213	0.27962
8	0.08937	0.72787	0.02962
(1/2,0,0)' + set click here to show and hide
9	0.66063	0.22787	0.22038
10	0.91063	0.27213	0.47038
11	0.33937	0.77213	0.77962
12	0.08937	0.72787	0.52962
(0,0,1/2)' + set click here to show and hide
13	0.16063	0.22787	0.72038
14	0.41063	0.27213	0.97038
15	0.83937	0.77213	0.27962
16	0.58937	0.72787	0.02962

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.11561	0.05220	0.36867
2	0.36561	0.44780	0.61867
3	0.88439	0.94780	0.63133
4	0.63439	0.55220	0.38133
(1/2,0,1/2) + set click here to show and hide
5	0.61561	0.05220	0.86867
6	0.86561	0.44780	0.11867
7	0.38439	0.94780	0.13133
8	0.13439	0.55220	0.88133
(1/2,0,0)' + set click here to show and hide
9	0.61561	0.05220	0.36867
10	0.86561	0.44780	0.61867
11	0.38439	0.94780	0.63133
12	0.13439	0.55220	0.38133
(0,0,1/2)' + set click here to show and hide
13	0.11561	0.05220	0.86867
14	0.36561	0.44780	0.11867
15	0.88439	0.94780	0.13133
16	0.63439	0.55220	0.88133

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.25972	0.03295	0.13256
2	0.50972	0.46705	0.38256
3	0.74028	0.96705	0.86744
4	0.49028	0.53295	0.61744
(1/2,0,1/2) + set click here to show and hide
5	0.75972	0.03295	0.63256
6	0.00972	0.46705	0.88256
7	0.24028	0.96705	0.36744
8	0.99028	0.53295	0.11744
(1/2,0,0)' + set click here to show and hide
9	0.75972	0.03295	0.13256
10	0.00972	0.46705	0.38256
11	0.24028	0.96705	0.86744
12	0.99028	0.53295	0.61744
(0,0,1/2)' + set click here to show and hide
13	0.25972	0.03295	0.63256
14	0.50972	0.46705	0.88256
15	0.74028	0.96705	0.36744
16	0.49028	0.53295	0.11744

Set of atoms in the unit cell related by symmetry with the atom O5:

Atom	x	y	z
1	0.24380	0.52108	0.14386
2	0.49380	0.97892	0.39386
3	0.75620	0.47892	0.85614
4	0.50620	0.02108	0.60614
(1/2,0,1/2) + set click here to show and hide
5	0.74380	0.52108	0.64386
6	0.99380	0.97892	0.89386
7	0.25620	0.47892	0.35614
8	0.00620	0.02108	0.10614
(1/2,0,0)' + set click here to show and hide
9	0.74380	0.52108	0.14386
10	0.99380	0.97892	0.39386
11	0.25620	0.47892	0.85614
12	0.00620	0.02108	0.60614
(0,0,1/2)' + set click here to show and hide
13	0.24380	0.52108	0.64386
14	0.49380	0.97892	0.89386
15	0.75620	0.47892	0.35614
16	0.50620	0.02108	0.10614

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Yb	Yb	0.43515	0.25339	0.11703	16	m_x.m_y,m_z,	0.40(5)	0.06(12)	2.96(3)	2.97
Fe	Fe	0.45669	0.24383	0.37789	16	m_x.m_y,m_z,	0.92(4)	0.22(16)	4.01(4)	4.09

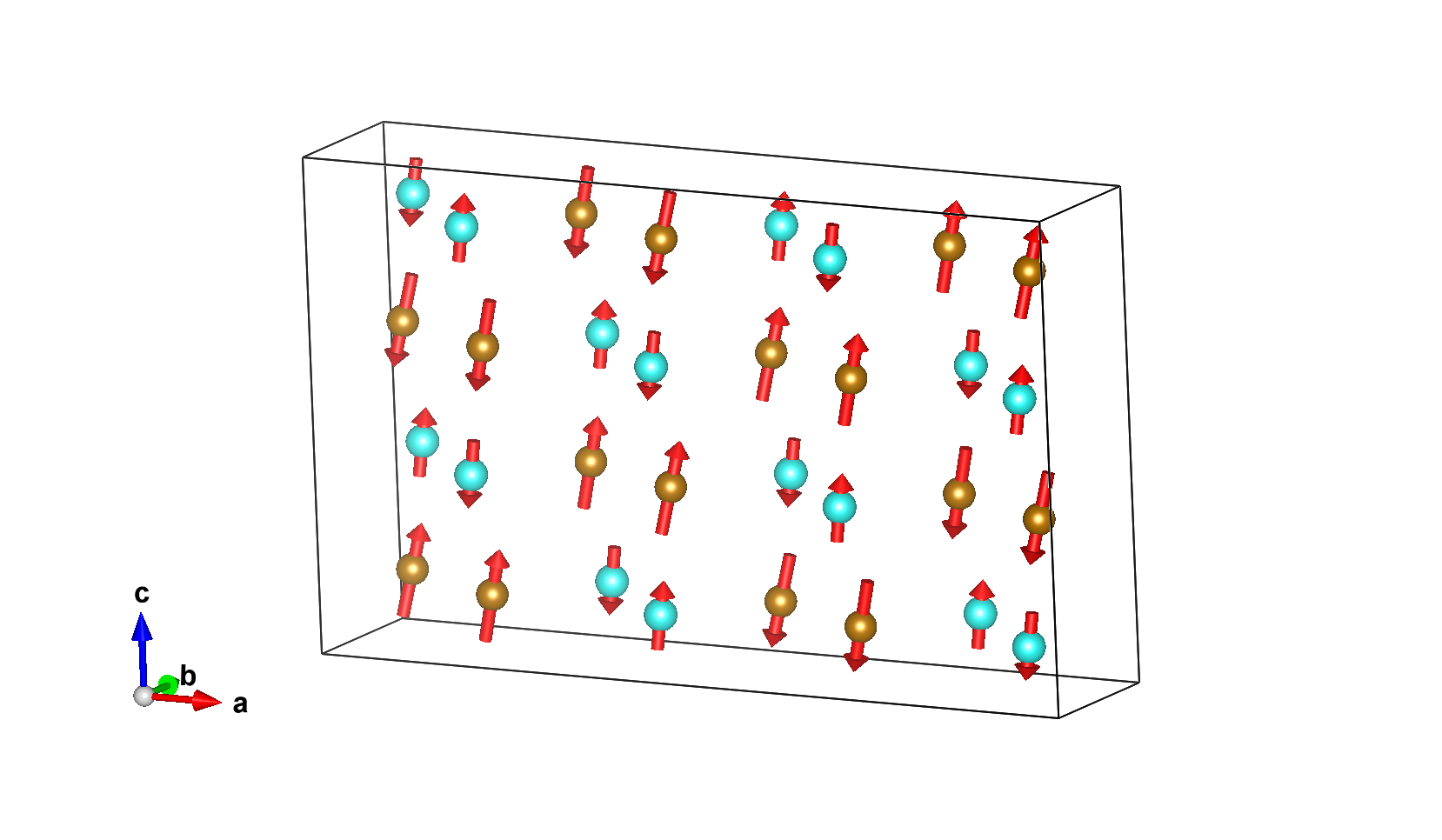

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Yb:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.43515	0.25339	0.11703	m_x,m_z,0	0.40000	0.06000	2.96000
2	0.68515	0.24661	0.36703	m_x,-m_z,0	0.40000	-0.06000	2.96000
3	0.56485	0.74661	0.88297	m_x,m_z,0	0.40000	0.06000	2.96000
4	0.31485	0.75339	0.63297	m_x,-m_z,0	0.40000	-0.06000	2.96000
(1/2,0,1/2) + set click here to show and hide
5	0.93515	0.25339	0.61703	m_x,m_z,0	0.40000	0.06000	2.96000
6	0.18515	0.24661	0.86703	m_x,-m_z,0	0.40000	-0.06000	2.96000
7	0.06485	0.74661	0.38297	m_x,m_z,0	0.40000	0.06000	2.96000
8	0.81485	0.75339	0.13297	m_x,-m_z,0	0.40000	-0.06000	2.96000
(1/2,0,0)' + set click here to show and hide
9	0.93515	0.25339	0.11703	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
10	0.18515	0.24661	0.36703	-m_x,m_z,0	-0.40000	0.06000	-2.96000
11	0.06485	0.74661	0.88297	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
12	0.81485	0.75339	0.63297	-m_x,m_z,0	-0.40000	0.06000	-2.96000
(0,0,1/2)' + set click here to show and hide
13	0.43515	0.25339	0.61703	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
14	0.68515	0.24661	0.86703	-m_x,m_z,0	-0.40000	0.06000	-2.96000
15	0.56485	0.74661	0.38297	-m_x,-m_z,0	-0.40000	-0.06000	-2.96000
16	0.31485	0.75339	0.13297	-m_x,m_z,0	-0.40000	0.06000	-2.96000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.45669	0.24383	0.37789	m_x,m_z,0	0.92000	0.22000	4.01000
2	0.70669	0.25617	0.62789	m_x,-m_z,0	0.92000	-0.22000	4.01000
3	0.54331	0.75617	0.62211	m_x,m_z,0	0.92000	0.22000	4.01000
4	0.29331	0.74383	0.37211	m_x,-m_z,0	0.92000	-0.22000	4.01000
(1/2,0,1/2) + set click here to show and hide
5	0.95669	0.24383	0.87789	m_x,m_z,0	0.92000	0.22000	4.01000
6	0.20669	0.25617	0.12789	m_x,-m_z,0	0.92000	-0.22000	4.01000
7	0.04331	0.75617	0.12211	m_x,m_z,0	0.92000	0.22000	4.01000
8	0.79331	0.74383	0.87211	m_x,-m_z,0	0.92000	-0.22000	4.01000
(1/2,0,0)' + set click here to show and hide
9	0.95669	0.24383	0.37789	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
10	0.20669	0.25617	0.62789	-m_x,m_z,0	-0.92000	0.22000	-4.01000
11	0.04331	0.75617	0.62211	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
12	0.79331	0.74383	0.37211	-m_x,m_z,0	-0.92000	0.22000	-4.01000
(0,0,1/2)' + set click here to show and hide
13	0.45669	0.24383	0.87789	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
14	0.70669	0.25617	0.12789	-m_x,m_z,0	-0.92000	0.22000	-4.01000
15	0.54331	0.75617	0.12211	-m_x,-m_z,0	-0.92000	-0.22000	-4.01000
16	0.29331	0.74383	0.87211	-m_x,m_z,0	-0.92000	0.22000	-4.01000

[Hide]

label	dim. small irrep	dim. full irrep	action	number of modes
mY1+	1	1	primary	6

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Ba₂YbFeO₅ (#1.865)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Ba2YbFeO5 (#1.865)

Ba₂YbFeO₅ (#1.865)
