Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y,x,z+1/2,+1	{ 4⁺₀₀₁ \| 0 0 1/2 }
3	y,-x,z+1/2,+1	{ 4^-₀₀₁ \| 0 0 1/2 }
4	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
5	-x+1/2,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 1/2 1/2 1/2 }
6	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
7	y+1/2,x+1/2,-z,+1	{ 2₁₁₀ \| 1/2 1/2 0 }
8	-y+1/2,-x+1/2,-z,+1	{ 2_1-10 \| 1/2 1/2 0 }
9	-x,-y,-z,+1	{ -1 \| 0 }
10	y,-x,-z+1/2,+1	{ -4⁺₀₀₁ \| 0 0 1/2 }
11	-y,x,-z+1/2,+1	{ -4^-₀₀₁ \| 0 0 1/2 }
12	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
13	x+1/2,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 1/2 1/2 1/2 }
14	x,y,-z,+1	{ m₀₀₁ \| 0 }
15	-y+1/2,-x+1/2,z,+1	{ m₁₁₀ \| 1/2 1/2 0 }
16	y+1/2,x+1/2,z,+1	{ m_1-10 \| 1/2 1/2 0 }
(0,0,1/2)' + set click here to show and hide
17	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
18	-y,x,z,-1	{ 4'⁺₀₀₁ \| 0 }
19	y,-x,z,-1	{ 4'^-₀₀₁ \| 0 }
20	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
21	-x+1/2,y+1/2,-z,-1	{ 2'₀₁₀ \| 1/2 1/2 0 }
22	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
23	y+1/2,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 1/2 1/2 }
24	-y+1/2,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 1/2 1/2 1/2 }
25	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
26	y,-x,-z,-1	{ -4'⁺₀₀₁ \| 0 }
27	-y,x,-z,-1	{ -4'^-₀₀₁ \| 0 }
28	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
29	x+1/2,-y+1/2,z,-1	{ m'₀₁₀ \| 1/2 1/2 0 }
30	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }
31	-y+1/2,-x+1/2,z+1/2,-1	{ m'₁₁₀ \| 1/2 1/2 1/2 }
32	y+1/2,x+1/2,z+1/2,-1	{ m'_1-10 \| 1/2 1/2 1/2 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,x,z,+1	4⁺₀₀₁
3	y,-x,z,+1	4^-₀₀₁
4	x,-y,-z,+1	2₁₀₀
5	-x,y,-z,+1	2₀₁₀
6	-x,-y,z,+1	2₀₀₁
7	y,x,-z,+1	2₁₁₀
8	-y,-x,-z,+1	2_1-10
9	-x,-y,-z,+1	-1
10	y,-x,-z,+1	-4⁺₀₀₁
11	-y,x,-z,+1	-4^-₀₀₁
12	-x,y,z,+1	m₁₀₀
13	x,-y,z,+1	m₀₁₀
14	x,y,-z,+1	m₀₀₁
15	-y,-x,z,+1	m₁₁₀
16	y,x,z,+1	m_1-10
1' + set click here to show and hide
17	x,y,z,-1	1'
18	-y,x,z,-1	4'⁺₀₀₁
19	y,-x,z,-1	4'^-₀₀₁
20	x,-y,-z,-1	2'₁₀₀
21	-x,y,-z,-1	2'₀₁₀
22	-x,-y,z,-1	2'₀₀₁
23	y,x,-z,-1	2'₁₁₀
24	-y,-x,-z,-1	2'_1-10
25	-x,-y,-z,-1	-1'
26	y,-x,-z,-1	-4'⁺₀₀₁
27	-y,x,-z,-1	-4'^-₀₀₁
28	-x,y,z,-1	m'₁₀₀
29	x,-y,z,-1	m'₀₁₀
30	x,y,-z,-1	m'₀₀₁
31	-y,-x,z,-1	m'₁₁₀
32	y,x,z,-1	m'_1-10

[Hide]

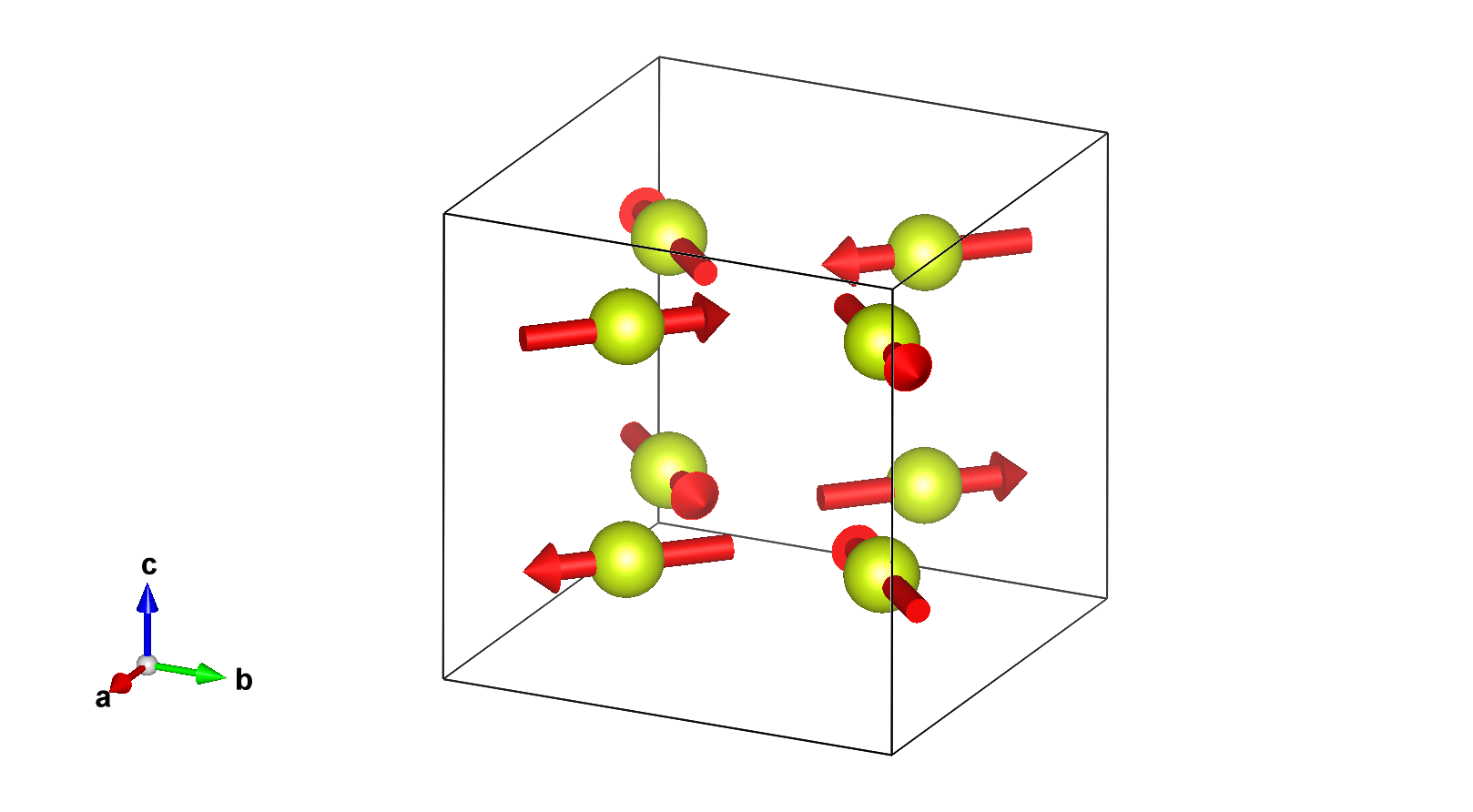

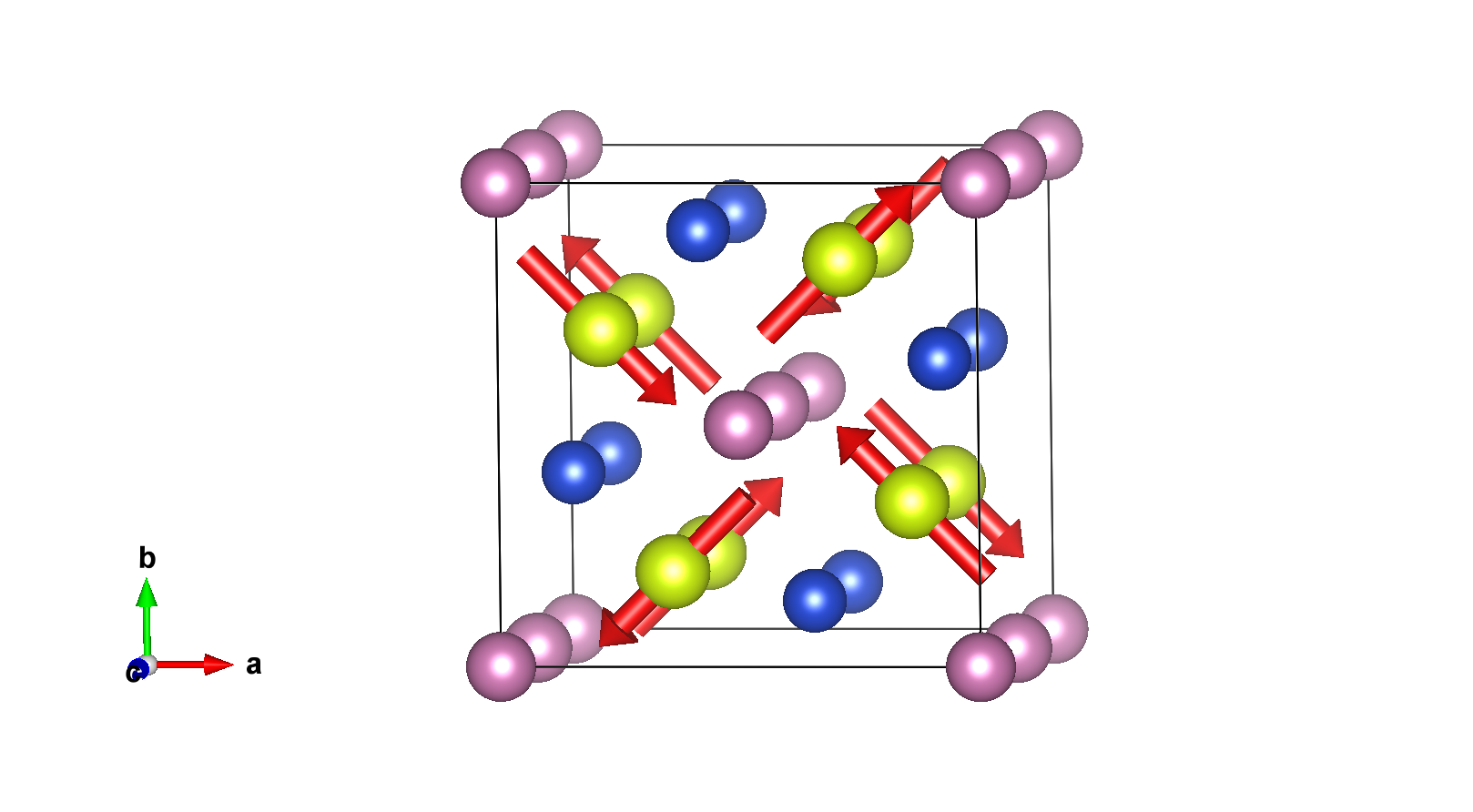

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.17750	0.67750	0.25000	8	m_x,-m_x,0	-1.01	1.01	0.0	1.43

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cu1	Cu	0.38250	0.88250	0.25000	8
In1	In	0.00000	0.00000	0.00000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.17750	0.67750	0.25000	m_x,-m_x,0	-1.01000	1.01000	0.00000
2	0.32250	0.17750	0.75000	m_x,m_x,0	-1.01000	-1.01000	0.00000
3	0.67750	0.82250	0.75000	-m_x,-m_x,0	1.01000	1.01000	0.00000
4	0.82250	0.32250	0.25000	-m_x,m_x,0	1.01000	-1.01000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.17750	0.67750	0.75000	-m_x,m_x,0	1.01000	-1.01000	0.00000
6	0.32250	0.17750	0.25000	-m_x,-m_x,0	1.01000	1.01000	0.00000
7	0.67750	0.82250	0.25000	m_x,m_x,0	-1.01000	-1.01000	0.00000
8	0.82250	0.32250	0.75000	m_x,-m_x,0	-1.01000	1.01000	0.00000

Atom	x	y	z
1	0.38250	0.88250	0.25000
2	0.11750	0.38250	0.75000
3	0.88250	0.61750	0.75000
4	0.61750	0.11750	0.25000
(0,0,1/2)' + set click here to show and hide
5	0.38250	0.88250	0.75000
6	0.11750	0.38250	0.25000
7	0.88250	0.61750	0.25000
8	0.61750	0.11750	0.75000

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.50000	0.50000
(0,0,1/2)' + set click here to show and hide
3	0.00000	0.00000	0.50000
4	0.50000	0.50000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.17750	0.67750	0.25000	8	m_x,-m_x,0	-1.01	1.01	0.0	1.43

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.17750	0.67750	0.25000	m_x,-m_x,0	-1.01000	1.01000	0.00000
2	0.32250	0.17750	0.75000	m_x,m_x,0	-1.01000	-1.01000	0.00000
3	0.67750	0.82250	0.75000	-m_x,-m_x,0	1.01000	1.01000	0.00000
4	0.82250	0.32250	0.25000	-m_x,m_x,0	1.01000	-1.01000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.17750	0.67750	0.75000	-m_x,m_x,0	1.01000	-1.01000	0.00000
6	0.32250	0.17750	0.25000	-m_x,-m_x,0	1.01000	1.01000	0.00000
7	0.67750	0.82250	0.25000	m_x,m_x,0	-1.01000	-1.01000	0.00000
8	0.82250	0.32250	0.75000	m_x,-m_x,0	-1.01000	1.01000	0.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mZ4+	1	1	primary	1
