MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x+1/2,-y+1/2,z,+1	{ 2₀₀₁ \| 1/2 1/2 0 }
3	-x+1/2,y,z,+1	{ m₁₀₀ \| 1/2 0 0 }
4	x,-y+1/2,z,+1	{ m₀₁₀ \| 0 1/2 0 }
(0,1/2,1/2) + set click here to show and hide
5	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
6	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
7	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
8	x,-y,z+1/2,+1	{ m₀₁₀ \| 0 0 1/2 }
(1/2,0,1/2) + set click here to show and hide
9	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
10	-x,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 0 1/2 1/2 }
11	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
12	x+1/2,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 1/2 1/2 1/2 }
(1/2,1/2,0) + set click here to show and hide
13	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
14	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
15	-x,y+1/2,z,+1	{ m₁₀₀ \| 0 1/2 0 }
16	x+1/2,-y,z,+1	{ m₀₁₀ \| 1/2 0 0 }
(1/2,0,0)' + set click here to show and hide
17	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
18	-x,-y+1/2,z,-1	{ 2'₀₀₁ \| 0 1/2 0 }
19	-x,y,z,-1	{ m'₁₀₀ \| 0 }
20	x+1/2,-y+1/2,z,-1	{ m'₀₁₀ \| 1/2 1/2 0 }
(0,1/2,0)' + set click here to show and hide
21	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
22	-x+1/2,-y,z,-1	{ 2'₀₀₁ \| 1/2 0 0 }
23	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
24	x,-y,z,-1	{ m'₀₁₀ \| 0 }
(0,0,1/2)' + set click here to show and hide
25	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
26	-x+1/2,-y+1/2,z+1/2,-1	{ 2'₀₀₁ \| 1/2 1/2 1/2 }
27	-x+1/2,y,z+1/2,-1	{ m'₁₀₀ \| 1/2 0 1/2 }
28	x,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 0 1/2 1/2 }
(1/2,1/2,1/2)' + set click here to show and hide
29	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
30	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
31	-x,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 0 1/2 1/2 }
32	x+1/2,-y,z+1/2,-1	{ m'₀₁₀ \| 1/2 0 1/2 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,z,+1	2₀₀₁
3	-x,y,z,+1	m₁₀₀
4	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-x,-y,z,-1	2'₀₀₁
7	-x,y,z,-1	m'₁₀₀
8	x,-y,z,-1	m'₀₁₀

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0.000000	0.374865	0.075500	1	16	0,m_y,m_z	0.0	2.71(22)	0.20(60)	2.72
Ni2	Ni	0.125850	0.376955	0.076850	1	32	m_x,m_y,m_z	-1.38(32)	1.82(17)	-0.44(36)	2.33
Ni3	Ni	0.311120	0.375075	0.325000	1	32	m_x,m_y,m_z	0.30(32)	0.07(64)	-0.36(52)	0.47

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Te1	Te	0.250000	0.375490	0.073800		16
Te2	Te	0.065535	0.376915	0.323050	1	32
K1	K	0.131350	0.000000	0.171500	0.47(3)	16
K2	K	0.000000	0.000000	0.069000	0.95(4)	8
K3	K	0.000000	0.250000	0.408000	0.89(4)	8
K4	K	0.250000	0.250000	0.373000	0.90(4)	8
K5	K	0.185000	0.000000	0.322000	0.53(2)	16
K6	K	0.133750	0.250000	0.087500	0.83(3)	16
K7	K	0.181050	0.000000	0.485500	0.46(3)	16
O1	O	0.000000	0.417350	0.398000	1	16
O2	O	0.120850	0.420000	0.400500	1	32
O3	O	0.250000	0.418050	0.412500	1	16
O4	O	0.309450	0.416900	0.150500	1	32
O5	O	0.250000	0.333300	0.222500	1	16
O6	O	0.061750	0.336050	0.473000	1	32
O7	O	0.191700	0.334650	0.489500	1	32
O8	O	0.120000	0.334150	0.239500	1	32
O9	O	0.061650	0.417300	0.162000	1	32
O10	O	0.000000	0.335550	0.247500	1	16

[Show all atoms in unit cell and their moment relations]

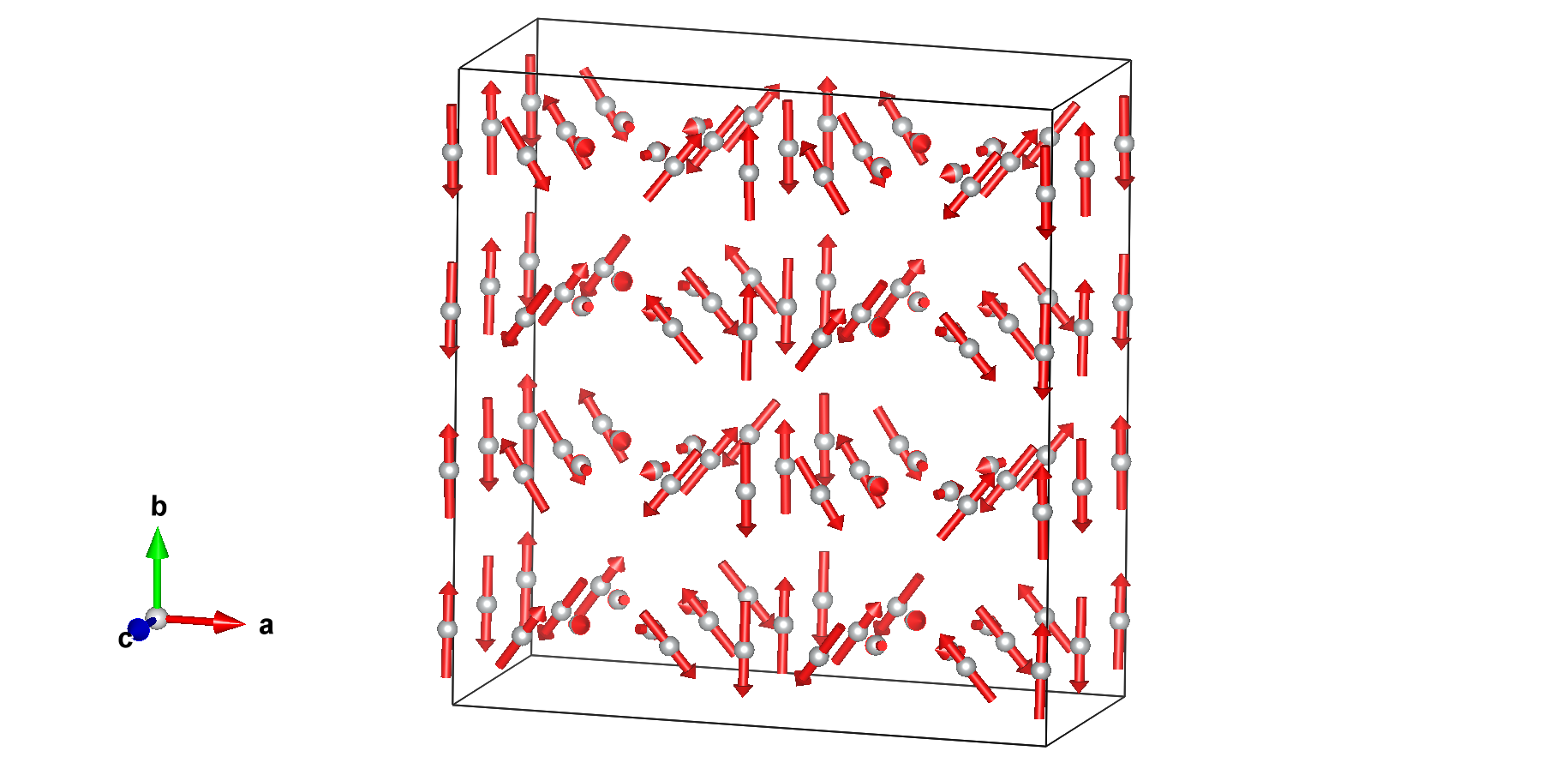

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.37487	0.07550	0,m_y,m_z	0.00000	2.71000	0.20000
2	0.50000	0.12514	0.07550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.87487	0.57550	0,m_y,m_z	0.00000	2.71000	0.20000
4	0.50000	0.62514	0.57550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.37487	0.57550	0,m_y,m_z	0.00000	2.71000	0.20000
6	0.00000	0.12514	0.57550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.87487	0.07550	0,m_y,m_z	0.00000	2.71000	0.20000
8	0.00000	0.62514	0.07550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.37487	0.07550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
10	0.00000	0.12514	0.07550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(0,1/2,0)' + set click here to show and hide
11	0.00000	0.87487	0.07550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
12	0.50000	0.62514	0.07550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.37487	0.57550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
14	0.50000	0.12514	0.57550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(1/2,1/2,1/2)' + set click here to show and hide
15	0.50000	0.87487	0.57550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
16	0.00000	0.62514	0.57550	0,m_y,-m_z	0.00000	2.71000	-0.20000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12585	0.37696	0.07685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
2	0.37415	0.12305	0.07685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
3	0.37415	0.37696	0.07685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
4	0.12585	0.12305	0.07685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(0,1/2,1/2) + set click here to show and hide
5	0.12585	0.87696	0.57685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
6	0.37415	0.62305	0.57685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
7	0.37415	0.87696	0.57685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
8	0.12585	0.62305	0.57685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,0,1/2) + set click here to show and hide
9	0.62585	0.37696	0.57685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
10	0.87415	0.12305	0.57685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
11	0.87415	0.37696	0.57685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
12	0.62585	0.12305	0.57685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,1/2,0) + set click here to show and hide
13	0.62585	0.87696	0.07685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
14	0.87415	0.62305	0.07685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
15	0.87415	0.87696	0.07685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
16	0.62585	0.62305	0.07685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,0,0)' + set click here to show and hide
17	0.62585	0.37696	0.07685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
18	0.87415	0.12305	0.07685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
19	0.87415	0.37696	0.07685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
20	0.62585	0.12305	0.07685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(0,1/2,0)' + set click here to show and hide
21	0.12585	0.87696	0.07685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
22	0.37415	0.62305	0.07685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
23	0.37415	0.87696	0.07685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
24	0.12585	0.62305	0.07685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(0,0,1/2)' + set click here to show and hide
25	0.12585	0.37696	0.57685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
26	0.37415	0.12305	0.57685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
27	0.37415	0.37696	0.57685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
28	0.12585	0.12305	0.57685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(1/2,1/2,1/2)' + set click here to show and hide
29	0.62585	0.87696	0.57685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
30	0.87415	0.62305	0.57685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
31	0.87415	0.87696	0.57685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
32	0.62585	0.62305	0.57685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.31112	0.37508	0.32500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
2	0.18888	0.12493	0.32500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
3	0.18888	0.37508	0.32500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
4	0.31112	0.12493	0.32500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(0,1/2,1/2) + set click here to show and hide
5	0.31112	0.87508	0.82500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
6	0.18888	0.62493	0.82500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
7	0.18888	0.87508	0.82500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
8	0.31112	0.62493	0.82500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,0,1/2) + set click here to show and hide
9	0.81112	0.37508	0.82500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
10	0.68888	0.12493	0.82500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
11	0.68888	0.37508	0.82500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
12	0.81112	0.12493	0.82500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,1/2,0) + set click here to show and hide
13	0.81112	0.87508	0.32500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
14	0.68888	0.62493	0.32500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
15	0.68888	0.87508	0.32500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
16	0.81112	0.62493	0.32500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,0,0)' + set click here to show and hide
17	0.81112	0.37508	0.32500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
18	0.68888	0.12493	0.32500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
19	0.68888	0.37508	0.32500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
20	0.81112	0.12493	0.32500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(0,1/2,0)' + set click here to show and hide
21	0.31112	0.87508	0.32500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
22	0.18888	0.62493	0.32500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
23	0.18888	0.87508	0.32500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
24	0.31112	0.62493	0.32500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(0,0,1/2)' + set click here to show and hide
25	0.31112	0.37508	0.82500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
26	0.18888	0.12493	0.82500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
27	0.18888	0.37508	0.82500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
28	0.31112	0.12493	0.82500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(1/2,1/2,1/2)' + set click here to show and hide
29	0.81112	0.87508	0.82500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
30	0.68888	0.62493	0.82500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
31	0.68888	0.87508	0.82500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
32	0.81112	0.62493	0.82500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Te1:

Atom	x	y	z
1	0.25000	0.37549	0.07380
2	0.25000	0.12451	0.07380
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.87549	0.57380
4	0.25000	0.62451	0.57380
(1/2,0,1/2) + set click here to show and hide
5	0.75000	0.37549	0.57380
6	0.75000	0.12451	0.57380
(1/2,1/2,0) + set click here to show and hide
7	0.75000	0.87549	0.07380
8	0.75000	0.62451	0.07380
(1/2,0,0)' + set click here to show and hide
9	0.75000	0.37549	0.07380
10	0.75000	0.12451	0.07380
(0,1/2,0)' + set click here to show and hide
11	0.25000	0.87549	0.07380
12	0.25000	0.62451	0.07380
(0,0,1/2)' + set click here to show and hide
13	0.25000	0.37549	0.57380
14	0.25000	0.12451	0.57380
(1/2,1/2,1/2)' + set click here to show and hide
15	0.75000	0.87549	0.57380
16	0.75000	0.62451	0.57380

Set of atoms in the unit cell related by symmetry with the atom Te2:

Atom	x	y	z
1	0.06553	0.37692	0.32305
2	0.43446	0.12308	0.32305
3	0.43446	0.37692	0.32305
4	0.06553	0.12308	0.32305
(0,1/2,1/2) + set click here to show and hide
5	0.06554	0.87692	0.82305
6	0.43447	0.62309	0.82305
7	0.43447	0.87692	0.82305
8	0.06554	0.62309	0.82305
(1/2,0,1/2) + set click here to show and hide
9	0.56554	0.37692	0.82305
10	0.93447	0.12309	0.82305
11	0.93447	0.37692	0.82305
12	0.56554	0.12309	0.82305
(1/2,1/2,0) + set click here to show and hide
13	0.56554	0.87692	0.32305
14	0.93447	0.62309	0.32305
15	0.93447	0.87692	0.32305
16	0.56554	0.62309	0.32305
(1/2,0,0)' + set click here to show and hide
17	0.56554	0.37692	0.32305
18	0.93447	0.12309	0.32305
19	0.93447	0.37692	0.32305
20	0.56554	0.12309	0.32305
(0,1/2,0)' + set click here to show and hide
21	0.06554	0.87692	0.32305
22	0.43447	0.62309	0.32305
23	0.43447	0.87692	0.32305
24	0.06554	0.62309	0.32305
(0,0,1/2)' + set click here to show and hide
25	0.06554	0.37692	0.82305
26	0.43447	0.12309	0.82305
27	0.43447	0.37692	0.82305
28	0.06554	0.12309	0.82305
(1/2,1/2,1/2)' + set click here to show and hide
29	0.56554	0.87692	0.82305
30	0.93447	0.62309	0.82305
31	0.93447	0.87692	0.82305
32	0.56554	0.62309	0.82305

Set of atoms in the unit cell related by symmetry with the atom K1:

Atom	x	y	z
1	0.13135	0.00000	0.17150
2	0.36865	0.50000	0.17150
(0,1/2,1/2) + set click here to show and hide
3	0.13135	0.50000	0.67150
4	0.36865	0.00000	0.67150
(1/2,0,1/2) + set click here to show and hide
5	0.63135	0.00000	0.67150
6	0.86865	0.50000	0.67150
(1/2,1/2,0) + set click here to show and hide
7	0.63135	0.50000	0.17150
8	0.86865	0.00000	0.17150
(1/2,0,0)' + set click here to show and hide
9	0.63135	0.00000	0.17150
10	0.86865	0.50000	0.17150
(0,1/2,0)' + set click here to show and hide
11	0.13135	0.50000	0.17150
12	0.36865	0.00000	0.17150
(0,0,1/2)' + set click here to show and hide
13	0.13135	0.00000	0.67150
14	0.36865	0.50000	0.67150
(1/2,1/2,1/2)' + set click here to show and hide
15	0.63135	0.50000	0.67150
16	0.86865	0.00000	0.67150

Set of atoms in the unit cell related by symmetry with the atom K2:

Atom	x	y	z
1	0.00000	0.00000	0.06900
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.56900
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.00000	0.56900
(1/2,1/2,0) + set click here to show and hide
4	0.50000	0.50000	0.06900
(1/2,0,0)' + set click here to show and hide
5	0.50000	0.00000	0.06900
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.50000	0.06900
(0,0,1/2)' + set click here to show and hide
7	0.00000	0.00000	0.56900
(1/2,1/2,1/2)' + set click here to show and hide
8	0.50000	0.50000	0.56900

Set of atoms in the unit cell related by symmetry with the atom K3:

Atom	x	y	z
1	0.00000	0.25000	0.40800
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.75000	0.90800
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.25000	0.90800
(1/2,1/2,0) + set click here to show and hide
4	0.50000	0.75000	0.40800
(1/2,0,0)' + set click here to show and hide
5	0.50000	0.25000	0.40800
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.75000	0.40800
(0,0,1/2)' + set click here to show and hide
7	0.00000	0.25000	0.90800
(1/2,1/2,1/2)' + set click here to show and hide
8	0.50000	0.75000	0.90800

Set of atoms in the unit cell related by symmetry with the atom K4:

Atom	x	y	z
1	0.25000	0.25000	0.37300
(0,1/2,1/2) + set click here to show and hide
2	0.25000	0.75000	0.87300
(1/2,0,1/2) + set click here to show and hide
3	0.75000	0.25000	0.87300
(1/2,1/2,0) + set click here to show and hide
4	0.75000	0.75000	0.37300
(1/2,0,0)' + set click here to show and hide
5	0.75000	0.25000	0.37300
(0,1/2,0)' + set click here to show and hide
6	0.25000	0.75000	0.37300
(0,0,1/2)' + set click here to show and hide
7	0.25000	0.25000	0.87300
(1/2,1/2,1/2)' + set click here to show and hide
8	0.75000	0.75000	0.87300

Set of atoms in the unit cell related by symmetry with the atom K5:

Atom	x	y	z
1	0.18500	0.00000	0.32200
2	0.31500	0.50000	0.32200
(0,1/2,1/2) + set click here to show and hide
3	0.18500	0.50000	0.82200
4	0.31500	0.00000	0.82200
(1/2,0,1/2) + set click here to show and hide
5	0.68500	0.00000	0.82200
6	0.81500	0.50000	0.82200
(1/2,1/2,0) + set click here to show and hide
7	0.68500	0.50000	0.32200
8	0.81500	0.00000	0.32200
(1/2,0,0)' + set click here to show and hide
9	0.68500	0.00000	0.32200
10	0.81500	0.50000	0.32200
(0,1/2,0)' + set click here to show and hide
11	0.18500	0.50000	0.32200
12	0.31500	0.00000	0.32200
(0,0,1/2)' + set click here to show and hide
13	0.18500	0.00000	0.82200
14	0.31500	0.50000	0.82200
(1/2,1/2,1/2)' + set click here to show and hide
15	0.68500	0.50000	0.82200
16	0.81500	0.00000	0.82200

Set of atoms in the unit cell related by symmetry with the atom K6:

Atom	x	y	z
1	0.13375	0.25000	0.08750
2	0.36625	0.25000	0.08750
(0,1/2,1/2) + set click here to show and hide
3	0.13375	0.75000	0.58750
4	0.36625	0.75000	0.58750
(1/2,0,1/2) + set click here to show and hide
5	0.63375	0.25000	0.58750
6	0.86625	0.25000	0.58750
(1/2,1/2,0) + set click here to show and hide
7	0.63375	0.75000	0.08750
8	0.86625	0.75000	0.08750
(1/2,0,0)' + set click here to show and hide
9	0.63375	0.25000	0.08750
10	0.86625	0.25000	0.08750
(0,1/2,0)' + set click here to show and hide
11	0.13375	0.75000	0.08750
12	0.36625	0.75000	0.08750
(0,0,1/2)' + set click here to show and hide
13	0.13375	0.25000	0.58750
14	0.36625	0.25000	0.58750
(1/2,1/2,1/2)' + set click here to show and hide
15	0.63375	0.75000	0.58750
16	0.86625	0.75000	0.58750

Set of atoms in the unit cell related by symmetry with the atom K7:

Atom	x	y	z
1	0.18105	0.00000	0.48550
2	0.31895	0.50000	0.48550
(0,1/2,1/2) + set click here to show and hide
3	0.18105	0.50000	0.98550
4	0.31895	0.00000	0.98550
(1/2,0,1/2) + set click here to show and hide
5	0.68105	0.00000	0.98550
6	0.81895	0.50000	0.98550
(1/2,1/2,0) + set click here to show and hide
7	0.68105	0.50000	0.48550
8	0.81895	0.00000	0.48550
(1/2,0,0)' + set click here to show and hide
9	0.68105	0.00000	0.48550
10	0.81895	0.50000	0.48550
(0,1/2,0)' + set click here to show and hide
11	0.18105	0.50000	0.48550
12	0.31895	0.00000	0.48550
(0,0,1/2)' + set click here to show and hide
13	0.18105	0.00000	0.98550
14	0.31895	0.50000	0.98550
(1/2,1/2,1/2)' + set click here to show and hide
15	0.68105	0.50000	0.98550
16	0.81895	0.00000	0.98550

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.00000	0.41735	0.39800
2	0.50000	0.08265	0.39800
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.91735	0.89800
4	0.50000	0.58265	0.89800
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.41735	0.89800
6	0.00000	0.08265	0.89800
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.91735	0.39800
8	0.00000	0.58265	0.39800
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.41735	0.39800
10	0.00000	0.08265	0.39800
(0,1/2,0)' + set click here to show and hide
11	0.00000	0.91735	0.39800
12	0.50000	0.58265	0.39800
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.41735	0.89800
14	0.50000	0.08265	0.89800
(1/2,1/2,1/2)' + set click here to show and hide
15	0.50000	0.91735	0.89800
16	0.00000	0.58265	0.89800

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.12085	0.42000	0.40050
2	0.37915	0.08000	0.40050
3	0.37915	0.42000	0.40050
4	0.12085	0.08000	0.40050
(0,1/2,1/2) + set click here to show and hide
5	0.12085	0.92000	0.90050
6	0.37915	0.58000	0.90050
7	0.37915	0.92000	0.90050
8	0.12085	0.58000	0.90050
(1/2,0,1/2) + set click here to show and hide
9	0.62085	0.42000	0.90050
10	0.87915	0.08000	0.90050
11	0.87915	0.42000	0.90050
12	0.62085	0.08000	0.90050
(1/2,1/2,0) + set click here to show and hide
13	0.62085	0.92000	0.40050
14	0.87915	0.58000	0.40050
15	0.87915	0.92000	0.40050
16	0.62085	0.58000	0.40050
(1/2,0,0)' + set click here to show and hide
17	0.62085	0.42000	0.40050
18	0.87915	0.08000	0.40050
19	0.87915	0.42000	0.40050
20	0.62085	0.08000	0.40050
(0,1/2,0)' + set click here to show and hide
21	0.12085	0.92000	0.40050
22	0.37915	0.58000	0.40050
23	0.37915	0.92000	0.40050
24	0.12085	0.58000	0.40050
(0,0,1/2)' + set click here to show and hide
25	0.12085	0.42000	0.90050
26	0.37915	0.08000	0.90050
27	0.37915	0.42000	0.90050
28	0.12085	0.08000	0.90050
(1/2,1/2,1/2)' + set click here to show and hide
29	0.62085	0.92000	0.90050
30	0.87915	0.58000	0.90050
31	0.87915	0.92000	0.90050
32	0.62085	0.58000	0.90050

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.25000	0.41805	0.41250
2	0.25000	0.08195	0.41250
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.91805	0.91250
4	0.25000	0.58195	0.91250
(1/2,0,1/2) + set click here to show and hide
5	0.75000	0.41805	0.91250
6	0.75000	0.08195	0.91250
(1/2,1/2,0) + set click here to show and hide
7	0.75000	0.91805	0.41250
8	0.75000	0.58195	0.41250
(1/2,0,0)' + set click here to show and hide
9	0.75000	0.41805	0.41250
10	0.75000	0.08195	0.41250
(0,1/2,0)' + set click here to show and hide
11	0.25000	0.91805	0.41250
12	0.25000	0.58195	0.41250
(0,0,1/2)' + set click here to show and hide
13	0.25000	0.41805	0.91250
14	0.25000	0.08195	0.91250
(1/2,1/2,1/2)' + set click here to show and hide
15	0.75000	0.91805	0.91250
16	0.75000	0.58195	0.91250

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.30945	0.41690	0.15050
2	0.19055	0.08310	0.15050
3	0.19055	0.41690	0.15050
4	0.30945	0.08310	0.15050
(0,1/2,1/2) + set click here to show and hide
5	0.30945	0.91690	0.65050
6	0.19055	0.58310	0.65050
7	0.19055	0.91690	0.65050
8	0.30945	0.58310	0.65050
(1/2,0,1/2) + set click here to show and hide
9	0.80945	0.41690	0.65050
10	0.69055	0.08310	0.65050
11	0.69055	0.41690	0.65050
12	0.80945	0.08310	0.65050
(1/2,1/2,0) + set click here to show and hide
13	0.80945	0.91690	0.15050
14	0.69055	0.58310	0.15050
15	0.69055	0.91690	0.15050
16	0.80945	0.58310	0.15050
(1/2,0,0)' + set click here to show and hide
17	0.80945	0.41690	0.15050
18	0.69055	0.08310	0.15050
19	0.69055	0.41690	0.15050
20	0.80945	0.08310	0.15050
(0,1/2,0)' + set click here to show and hide
21	0.30945	0.91690	0.15050
22	0.19055	0.58310	0.15050
23	0.19055	0.91690	0.15050
24	0.30945	0.58310	0.15050
(0,0,1/2)' + set click here to show and hide
25	0.30945	0.41690	0.65050
26	0.19055	0.08310	0.65050
27	0.19055	0.41690	0.65050
28	0.30945	0.08310	0.65050
(1/2,1/2,1/2)' + set click here to show and hide
29	0.80945	0.91690	0.65050
30	0.69055	0.58310	0.65050
31	0.69055	0.91690	0.65050
32	0.80945	0.58310	0.65050

Set of atoms in the unit cell related by symmetry with the atom O5:

Atom	x	y	z
1	0.25000	0.33330	0.22250
2	0.25000	0.16670	0.22250
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.83330	0.72250
4	0.25000	0.66670	0.72250
(1/2,0,1/2) + set click here to show and hide
5	0.75000	0.33330	0.72250
6	0.75000	0.16670	0.72250
(1/2,1/2,0) + set click here to show and hide
7	0.75000	0.83330	0.22250
8	0.75000	0.66670	0.22250
(1/2,0,0)' + set click here to show and hide
9	0.75000	0.33330	0.22250
10	0.75000	0.16670	0.22250
(0,1/2,0)' + set click here to show and hide
11	0.25000	0.83330	0.22250
12	0.25000	0.66670	0.22250
(0,0,1/2)' + set click here to show and hide
13	0.25000	0.33330	0.72250
14	0.25000	0.16670	0.72250
(1/2,1/2,1/2)' + set click here to show and hide
15	0.75000	0.83330	0.72250
16	0.75000	0.66670	0.72250

Set of atoms in the unit cell related by symmetry with the atom O6:

Atom	x	y	z
1	0.06175	0.33605	0.47300
2	0.43825	0.16395	0.47300
3	0.43825	0.33605	0.47300
4	0.06175	0.16395	0.47300
(0,1/2,1/2) + set click here to show and hide
5	0.06175	0.83605	0.97300
6	0.43825	0.66395	0.97300
7	0.43825	0.83605	0.97300
8	0.06175	0.66395	0.97300
(1/2,0,1/2) + set click here to show and hide
9	0.56175	0.33605	0.97300
10	0.93825	0.16395	0.97300
11	0.93825	0.33605	0.97300
12	0.56175	0.16395	0.97300
(1/2,1/2,0) + set click here to show and hide
13	0.56175	0.83605	0.47300
14	0.93825	0.66395	0.47300
15	0.93825	0.83605	0.47300
16	0.56175	0.66395	0.47300
(1/2,0,0)' + set click here to show and hide
17	0.56175	0.33605	0.47300
18	0.93825	0.16395	0.47300
19	0.93825	0.33605	0.47300
20	0.56175	0.16395	0.47300
(0,1/2,0)' + set click here to show and hide
21	0.06175	0.83605	0.47300
22	0.43825	0.66395	0.47300
23	0.43825	0.83605	0.47300
24	0.06175	0.66395	0.47300
(0,0,1/2)' + set click here to show and hide
25	0.06175	0.33605	0.97300
26	0.43825	0.16395	0.97300
27	0.43825	0.33605	0.97300
28	0.06175	0.16395	0.97300
(1/2,1/2,1/2)' + set click here to show and hide
29	0.56175	0.83605	0.97300
30	0.93825	0.66395	0.97300
31	0.93825	0.83605	0.97300
32	0.56175	0.66395	0.97300

Set of atoms in the unit cell related by symmetry with the atom O7:

Atom	x	y	z
1	0.19170	0.33465	0.48950
2	0.30830	0.16535	0.48950
3	0.30830	0.33465	0.48950
4	0.19170	0.16535	0.48950
(0,1/2,1/2) + set click here to show and hide
5	0.19170	0.83465	0.98950
6	0.30830	0.66535	0.98950
7	0.30830	0.83465	0.98950
8	0.19170	0.66535	0.98950
(1/2,0,1/2) + set click here to show and hide
9	0.69170	0.33465	0.98950
10	0.80830	0.16535	0.98950
11	0.80830	0.33465	0.98950
12	0.69170	0.16535	0.98950
(1/2,1/2,0) + set click here to show and hide
13	0.69170	0.83465	0.48950
14	0.80830	0.66535	0.48950
15	0.80830	0.83465	0.48950
16	0.69170	0.66535	0.48950
(1/2,0,0)' + set click here to show and hide
17	0.69170	0.33465	0.48950
18	0.80830	0.16535	0.48950
19	0.80830	0.33465	0.48950
20	0.69170	0.16535	0.48950
(0,1/2,0)' + set click here to show and hide
21	0.19170	0.83465	0.48950
22	0.30830	0.66535	0.48950
23	0.30830	0.83465	0.48950
24	0.19170	0.66535	0.48950
(0,0,1/2)' + set click here to show and hide
25	0.19170	0.33465	0.98950
26	0.30830	0.16535	0.98950
27	0.30830	0.33465	0.98950
28	0.19170	0.16535	0.98950
(1/2,1/2,1/2)' + set click here to show and hide
29	0.69170	0.83465	0.98950
30	0.80830	0.66535	0.98950
31	0.80830	0.83465	0.98950
32	0.69170	0.66535	0.98950

Set of atoms in the unit cell related by symmetry with the atom O8:

Atom	x	y	z
1	0.12000	0.33415	0.23950
2	0.38000	0.16585	0.23950
3	0.38000	0.33415	0.23950
4	0.12000	0.16585	0.23950
(0,1/2,1/2) + set click here to show and hide
5	0.12000	0.83415	0.73950
6	0.38000	0.66585	0.73950
7	0.38000	0.83415	0.73950
8	0.12000	0.66585	0.73950
(1/2,0,1/2) + set click here to show and hide
9	0.62000	0.33415	0.73950
10	0.88000	0.16585	0.73950
11	0.88000	0.33415	0.73950
12	0.62000	0.16585	0.73950
(1/2,1/2,0) + set click here to show and hide
13	0.62000	0.83415	0.23950
14	0.88000	0.66585	0.23950
15	0.88000	0.83415	0.23950
16	0.62000	0.66585	0.23950
(1/2,0,0)' + set click here to show and hide
17	0.62000	0.33415	0.23950
18	0.88000	0.16585	0.23950
19	0.88000	0.33415	0.23950
20	0.62000	0.16585	0.23950
(0,1/2,0)' + set click here to show and hide
21	0.12000	0.83415	0.23950
22	0.38000	0.66585	0.23950
23	0.38000	0.83415	0.23950
24	0.12000	0.66585	0.23950
(0,0,1/2)' + set click here to show and hide
25	0.12000	0.33415	0.73950
26	0.38000	0.16585	0.73950
27	0.38000	0.33415	0.73950
28	0.12000	0.16585	0.73950
(1/2,1/2,1/2)' + set click here to show and hide
29	0.62000	0.83415	0.73950
30	0.88000	0.66585	0.73950
31	0.88000	0.83415	0.73950
32	0.62000	0.66585	0.73950

Set of atoms in the unit cell related by symmetry with the atom O9:

Atom	x	y	z
1	0.06165	0.41730	0.16200
2	0.43835	0.08270	0.16200
3	0.43835	0.41730	0.16200
4	0.06165	0.08270	0.16200
(0,1/2,1/2) + set click here to show and hide
5	0.06165	0.91730	0.66200
6	0.43835	0.58270	0.66200
7	0.43835	0.91730	0.66200
8	0.06165	0.58270	0.66200
(1/2,0,1/2) + set click here to show and hide
9	0.56165	0.41730	0.66200
10	0.93835	0.08270	0.66200
11	0.93835	0.41730	0.66200
12	0.56165	0.08270	0.66200
(1/2,1/2,0) + set click here to show and hide
13	0.56165	0.91730	0.16200
14	0.93835	0.58270	0.16200
15	0.93835	0.91730	0.16200
16	0.56165	0.58270	0.16200
(1/2,0,0)' + set click here to show and hide
17	0.56165	0.41730	0.16200
18	0.93835	0.08270	0.16200
19	0.93835	0.41730	0.16200
20	0.56165	0.08270	0.16200
(0,1/2,0)' + set click here to show and hide
21	0.06165	0.91730	0.16200
22	0.43835	0.58270	0.16200
23	0.43835	0.91730	0.16200
24	0.06165	0.58270	0.16200
(0,0,1/2)' + set click here to show and hide
25	0.06165	0.41730	0.66200
26	0.43835	0.08270	0.66200
27	0.43835	0.41730	0.66200
28	0.06165	0.08270	0.66200
(1/2,1/2,1/2)' + set click here to show and hide
29	0.56165	0.91730	0.66200
30	0.93835	0.58270	0.66200
31	0.93835	0.91730	0.66200
32	0.56165	0.58270	0.66200

Set of atoms in the unit cell related by symmetry with the atom O10:

Atom	x	y	z
1	0.00000	0.33555	0.24750
2	0.50000	0.16445	0.24750
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.83555	0.74750
4	0.50000	0.66445	0.74750
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.33555	0.74750
6	0.00000	0.16445	0.74750
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.83555	0.24750
8	0.00000	0.66445	0.24750
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.33555	0.24750
10	0.00000	0.16445	0.24750
(0,1/2,0)' + set click here to show and hide
11	0.00000	0.83555	0.24750
12	0.50000	0.66445	0.24750
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.33555	0.74750
14	0.50000	0.16445	0.74750
(1/2,1/2,1/2)' + set click here to show and hide
15	0.50000	0.83555	0.74750
16	0.00000	0.66445	0.74750

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0.000000	0.374865	0.075500	16	0,m_y,m_z	0.0	2.71(22)	0.20(60)	2.72
Ni2	Ni	0.125850	0.376955	0.076850	32	m_x,m_y,m_z	-1.38(32)	1.82(17)	-0.44(36)	2.33
Ni3	Ni	0.311120	0.375075	0.325000	32	m_x,m_y,m_z	0.30(32)	0.07(64)	-0.36(52)	0.47

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.37487	0.07550	0,m_y,m_z	0.00000	2.71000	0.20000
2	0.50000	0.12514	0.07550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.87487	0.57550	0,m_y,m_z	0.00000	2.71000	0.20000
4	0.50000	0.62514	0.57550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.37487	0.57550	0,m_y,m_z	0.00000	2.71000	0.20000
6	0.00000	0.12514	0.57550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.87487	0.07550	0,m_y,m_z	0.00000	2.71000	0.20000
8	0.00000	0.62514	0.07550	0,-m_y,m_z	0.00000	-2.71000	0.20000
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.37487	0.07550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
10	0.00000	0.12514	0.07550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(0,1/2,0)' + set click here to show and hide
11	0.00000	0.87487	0.07550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
12	0.50000	0.62514	0.07550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.37487	0.57550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
14	0.50000	0.12514	0.57550	0,m_y,-m_z	0.00000	2.71000	-0.20000
(1/2,1/2,1/2)' + set click here to show and hide
15	0.50000	0.87487	0.57550	0,-m_y,-m_z	0.00000	-2.71000	-0.20000
16	0.00000	0.62514	0.57550	0,m_y,-m_z	0.00000	2.71000	-0.20000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12585	0.37696	0.07685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
2	0.37415	0.12305	0.07685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
3	0.37415	0.37696	0.07685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
4	0.12585	0.12305	0.07685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(0,1/2,1/2) + set click here to show and hide
5	0.12585	0.87696	0.57685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
6	0.37415	0.62305	0.57685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
7	0.37415	0.87696	0.57685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
8	0.12585	0.62305	0.57685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,0,1/2) + set click here to show and hide
9	0.62585	0.37696	0.57685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
10	0.87415	0.12305	0.57685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
11	0.87415	0.37696	0.57685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
12	0.62585	0.12305	0.57685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,1/2,0) + set click here to show and hide
13	0.62585	0.87696	0.07685	m_x,m_y,m_z	-1.38000	1.82000	-0.44000
14	0.87415	0.62305	0.07685	-m_x,-m_y,m_z	1.38000	-1.82000	-0.44000
15	0.87415	0.87696	0.07685	m_x,-m_y,-m_z	-1.38000	-1.82000	0.44000
16	0.62585	0.62305	0.07685	-m_x,m_y,-m_z	1.38000	1.82000	0.44000
(1/2,0,0)' + set click here to show and hide
17	0.62585	0.37696	0.07685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
18	0.87415	0.12305	0.07685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
19	0.87415	0.37696	0.07685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
20	0.62585	0.12305	0.07685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(0,1/2,0)' + set click here to show and hide
21	0.12585	0.87696	0.07685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
22	0.37415	0.62305	0.07685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
23	0.37415	0.87696	0.07685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
24	0.12585	0.62305	0.07685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(0,0,1/2)' + set click here to show and hide
25	0.12585	0.37696	0.57685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
26	0.37415	0.12305	0.57685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
27	0.37415	0.37696	0.57685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
28	0.12585	0.12305	0.57685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000
(1/2,1/2,1/2)' + set click here to show and hide
29	0.62585	0.87696	0.57685	-m_x,-m_y,-m_z	1.38000	-1.82000	0.44000
30	0.87415	0.62305	0.57685	m_x,m_y,-m_z	-1.38000	1.82000	0.44000
31	0.87415	0.87696	0.57685	-m_x,m_y,m_z	1.38000	1.82000	-0.44000
32	0.62585	0.62305	0.57685	m_x,-m_y,m_z	-1.38000	-1.82000	-0.44000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.31112	0.37508	0.32500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
2	0.18888	0.12493	0.32500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
3	0.18888	0.37508	0.32500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
4	0.31112	0.12493	0.32500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(0,1/2,1/2) + set click here to show and hide
5	0.31112	0.87508	0.82500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
6	0.18888	0.62493	0.82500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
7	0.18888	0.87508	0.82500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
8	0.31112	0.62493	0.82500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,0,1/2) + set click here to show and hide
9	0.81112	0.37508	0.82500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
10	0.68888	0.12493	0.82500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
11	0.68888	0.37508	0.82500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
12	0.81112	0.12493	0.82500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,1/2,0) + set click here to show and hide
13	0.81112	0.87508	0.32500	m_x,m_y,m_z	0.30000	0.07000	-0.36000
14	0.68888	0.62493	0.32500	-m_x,-m_y,m_z	-0.30000	-0.07000	-0.36000
15	0.68888	0.87508	0.32500	m_x,-m_y,-m_z	0.30000	-0.07000	0.36000
16	0.81112	0.62493	0.32500	-m_x,m_y,-m_z	-0.30000	0.07000	0.36000
(1/2,0,0)' + set click here to show and hide
17	0.81112	0.37508	0.32500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
18	0.68888	0.12493	0.32500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
19	0.68888	0.37508	0.32500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
20	0.81112	0.12493	0.32500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(0,1/2,0)' + set click here to show and hide
21	0.31112	0.87508	0.32500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
22	0.18888	0.62493	0.32500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
23	0.18888	0.87508	0.32500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
24	0.31112	0.62493	0.32500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(0,0,1/2)' + set click here to show and hide
25	0.31112	0.37508	0.82500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
26	0.18888	0.12493	0.82500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
27	0.18888	0.37508	0.82500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
28	0.31112	0.12493	0.82500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000
(1/2,1/2,1/2)' + set click here to show and hide
29	0.81112	0.87508	0.82500	-m_x,-m_y,-m_z	-0.30000	-0.07000	0.36000
30	0.68888	0.62493	0.82500	m_x,m_y,-m_z	0.30000	0.07000	0.36000
31	0.68888	0.87508	0.82500	-m_x,m_y,m_z	-0.30000	0.07000	-0.36000
32	0.81112	0.62493	0.82500	m_x,-m_y,m_z	0.30000	-0.07000	-0.36000

[Hide]

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mR2	1	1	general	primary	8

MAGNDATA: A Collection of magnetic structures with portable cif-type files

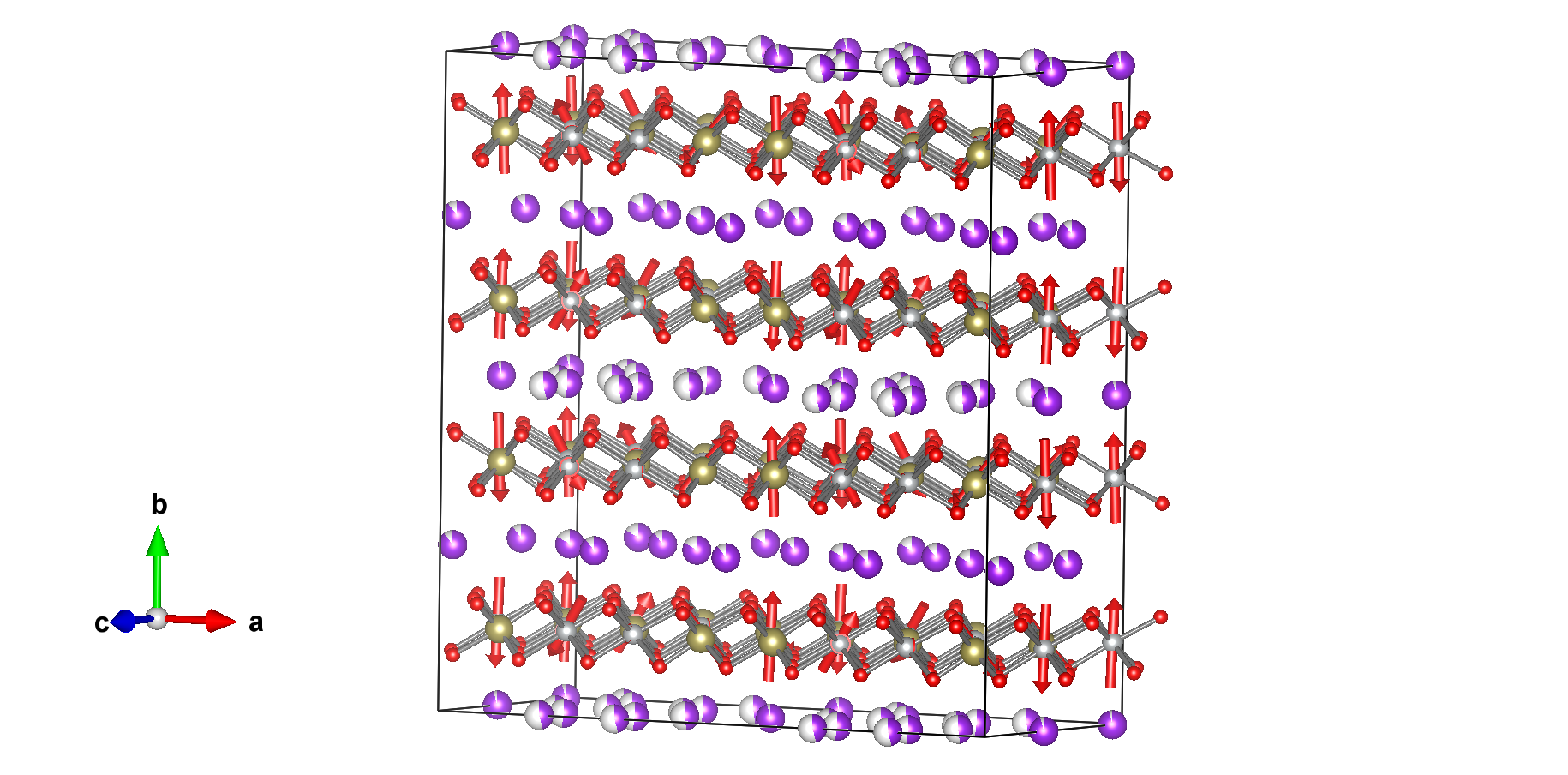

K₄Ni₅Te₃O₁₆ (#1.884)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

K4Ni5Te3O16 (#1.884)

K₄Ni₅Te₃O₁₆ (#1.884)
