Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
3	-x,-y+1/2,-z+1/2,+1	{ -1 \| 0 1/2 1/2 }
4	x,y,-z+1/2,+1	{ m₀₀₁ \| 0 0 1/2 }
5	-y,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 0 1/2 1/2 }
6	y+1/2,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 1/2 1/2 }
7	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }
8	-y,-x+1/2,z,-1	{ m'₁₁₀ \| 0 1/2 0 }
(0,1/2,1/2) + set click here to show and hide
9	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
10	-x,-y,z+1/2,+1	{ 2₀₀₁ \| 0 0 1/2 }
11	-x,-y,-z,+1	{ -1 \| 0 }
12	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
13	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
14	y+1/2,x,-z,-1	{ 2'₁₁₀ \| 1/2 0 0 }
15	y+1/2,x,z+1/2,-1	{ m'_1-10 \| 1/2 0 1/2 }
16	-y,-x,z+1/2,-1	{ m'₁₁₀ \| 0 0 1/2 }
(1/2,0,1/2) + set click here to show and hide
17	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
18	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
19	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
20	x+1/2,y,-z,+1	{ m₀₀₁ \| 1/2 0 0 }
21	-y+1/2,-x+1/2,-z,-1	{ 2'_1-10 \| 1/2 1/2 0 }
22	y,x+1/2,-z,-1	{ 2'₁₁₀ \| 0 1/2 0 }
23	y,x+1/2,z+1/2,-1	{ m'_1-10 \| 0 1/2 1/2 }
24	-y+1/2,-x+1/2,z+1/2,-1	{ m'₁₁₀ \| 1/2 1/2 1/2 }
(1/2,1/2,0) + set click here to show and hide
25	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
26	-x+1/2,-y,z,+1	{ 2₀₀₁ \| 1/2 0 0 }
27	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
28	x+1/2,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 1/2 1/2 1/2 }
29	-y+1/2,-x,-z+1/2,-1	{ 2'_1-10 \| 1/2 0 1/2 }
30	y,x,-z+1/2,-1	{ 2'₁₁₀ \| 0 0 1/2 }
31	y,x,z,-1	{ m'_1-10 \| 0 }
32	-y+1/2,-x,z,-1	{ m'₁₁₀ \| 1/2 0 0 }

[Hide]

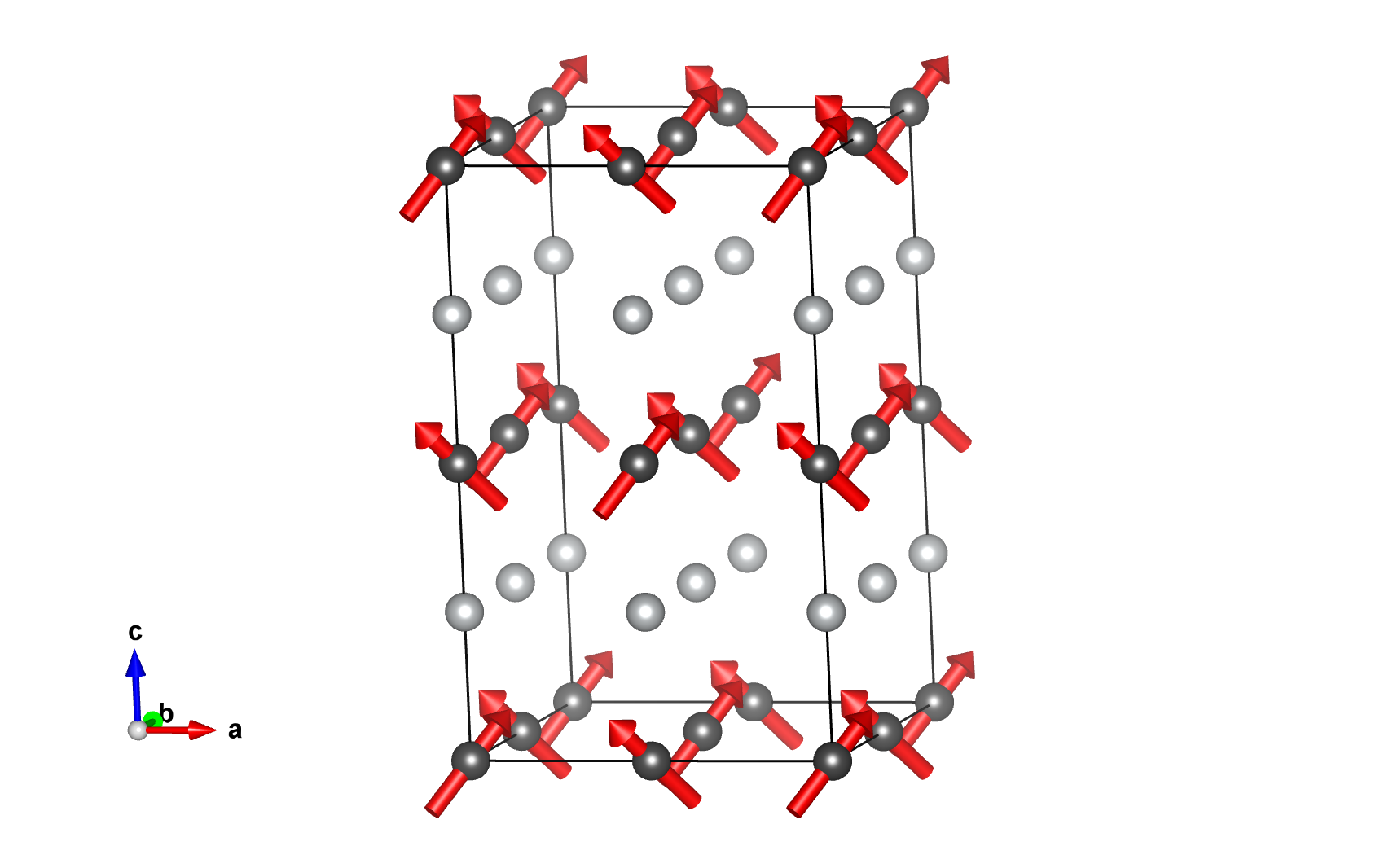

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Np1	Np	0.00000	0.00000	0.00000	8	m_x,m_x,m_z	0.42	0.42	0.59	0.84
Ni1	Ni	0.00000	0.00000	0.25000	8	0,0,m_z	0.0	0.0	0.0	0.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.25000	0.25000	0.00000	8
Ga2_1	Ga	0.00000	0.25000	0.15305	16
Ga2_2	Ga	0.00000	0.25000	0.84695	16

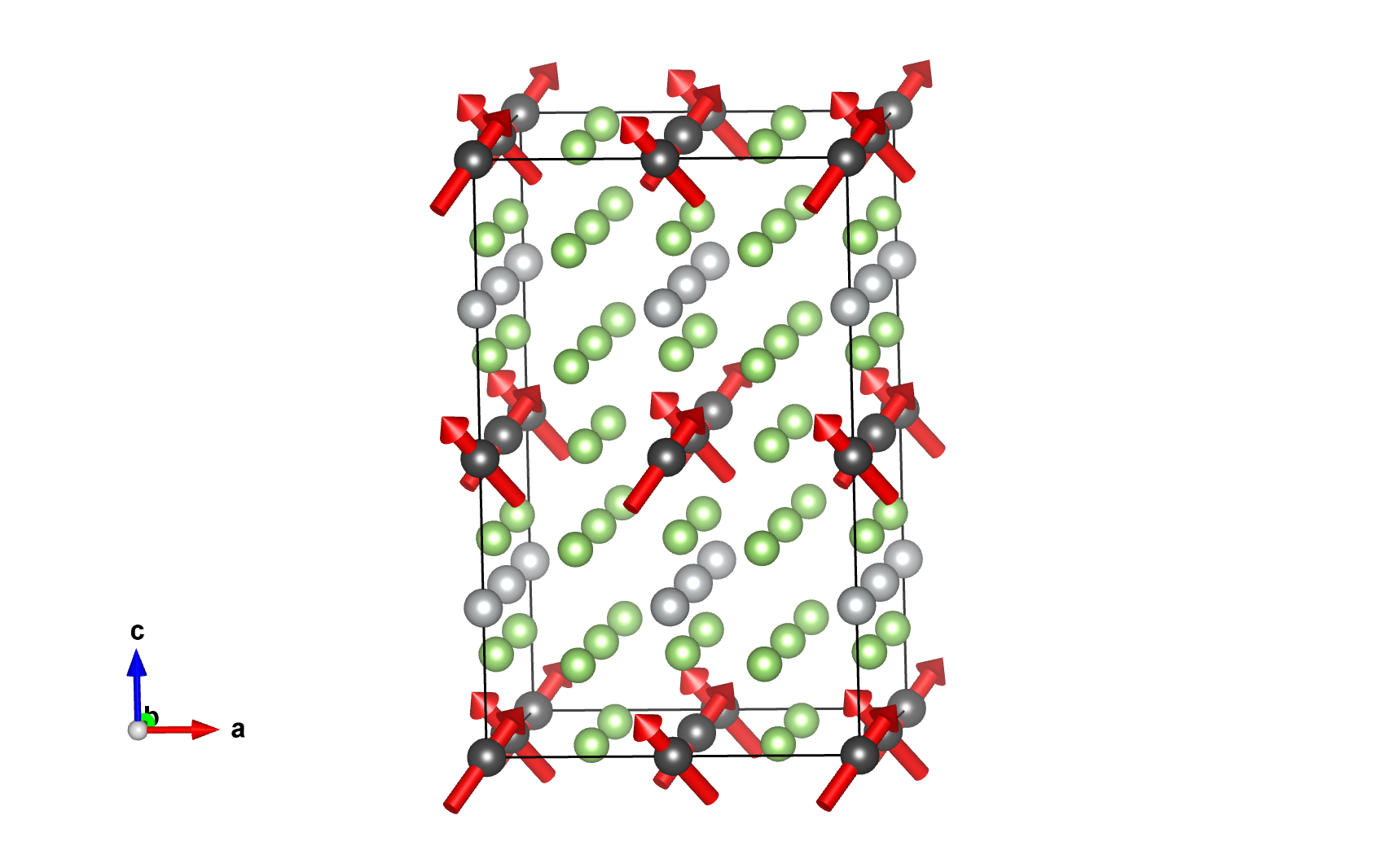

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Np1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_z	0.42000	0.42000	0.59000
2	0.00000	0.50000	0.00000	-m_x,-m_x,m_z	-0.42000	-0.42000	0.59000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.50000	m_x,m_x,m_z	0.42000	0.42000	0.59000
4	0.00000	0.00000	0.50000	-m_x,-m_x,m_z	-0.42000	-0.42000	0.59000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.00000	0.50000	m_x,m_x,m_z	0.42000	0.42000	0.59000
6	0.50000	0.50000	0.50000	-m_x,-m_x,m_z	-0.42000	-0.42000	0.59000
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.50000	0.00000	m_x,m_x,m_z	0.42000	0.42000	0.59000
8	0.50000	0.00000	0.00000	-m_x,-m_x,m_z	-0.42000	-0.42000	0.59000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.25000	0,0,m_z	0.00000	0.00000	0.00000
2	0.00000	0.50000	0.25000	0,0,m_z	0.00000	0.00000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.75000	0,0,m_z	0.00000	0.00000	0.00000
4	0.00000	0.00000	0.75000	0,0,m_z	0.00000	0.00000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.00000	0.75000	0,0,m_z	0.00000	0.00000	0.00000
6	0.50000	0.50000	0.75000	0,0,m_z	0.00000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
7	0.50000	0.50000	0.25000	0,0,m_z	0.00000	0.00000	0.00000
8	0.50000	0.00000	0.25000	0,0,m_z	0.00000	0.00000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ga1:

Atom	x	y	z
1	0.25000	0.25000	0.00000
2	0.75000	0.25000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.75000	0.50000
4	0.75000	0.75000	0.50000
(1/2,0,1/2) + set click here to show and hide
5	0.75000	0.25000	0.50000
6	0.25000	0.25000	0.50000
(1/2,1/2,0) + set click here to show and hide
7	0.75000	0.75000	0.00000
8	0.25000	0.75000	0.00000

Set of atoms in the unit cell related by symmetry with the atom Ga2_1:

Atom	x	y	z
1	0.00000	0.25000	0.15305
2	0.00000	0.25000	0.34695
3	0.75000	0.50000	0.34695
4	0.75000	0.50000	0.15305
(0,1/2,1/2) + set click here to show and hide
5	0.00000	0.75000	0.65305
6	0.00000	0.75000	0.84695
7	0.75000	0.00000	0.84695
8	0.75000	0.00000	0.65305
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.25000	0.65305
10	0.50000	0.25000	0.84695
11	0.25000	0.50000	0.84695
12	0.25000	0.50000	0.65305
(1/2,1/2,0) + set click here to show and hide
13	0.50000	0.75000	0.15305
14	0.50000	0.75000	0.34695
15	0.25000	0.00000	0.34695
16	0.25000	0.00000	0.15305

Set of atoms in the unit cell related by symmetry with the atom Ga2_2:

Atom	x	y	z
1	0.00000	0.25000	0.84695
2	0.00000	0.25000	0.65305
3	0.75000	0.50000	0.65305
4	0.75000	0.50000	0.84695
(0,1/2,1/2) + set click here to show and hide
5	0.00000	0.75000	0.34695
6	0.00000	0.75000	0.15305
7	0.75000	0.00000	0.15305
8	0.75000	0.00000	0.34695
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.25000	0.34695
10	0.50000	0.25000	0.15305
11	0.25000	0.50000	0.15305
12	0.25000	0.50000	0.34695
(1/2,1/2,0) + set click here to show and hide
13	0.50000	0.75000	0.84695
14	0.50000	0.75000	0.65305
15	0.25000	0.00000	0.65305
16	0.25000	0.00000	0.84695

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Np1	Np	0.00000	0.00000	0.00000	8	m_x,m_x,m_z	0.42	0.42	0.59	0.84
Ni1	Ni	0.00000	0.00000	0.25000	8	0,0,m_z	0.0	0.0	0.0	0.00
